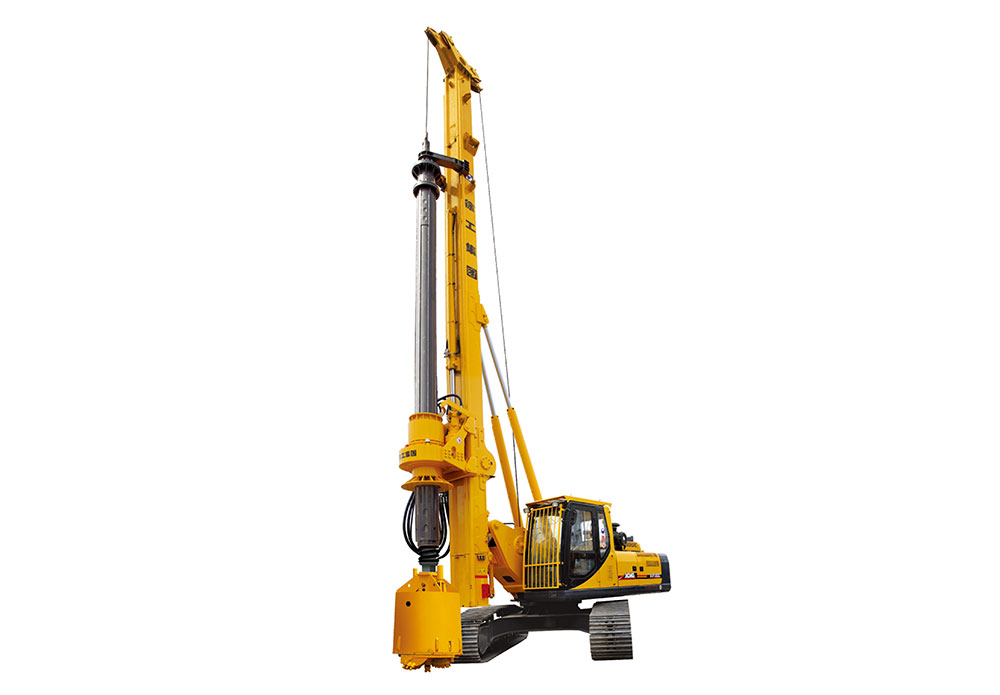

Rotary drilling rig
XRL100
The equipment adopt the wheel type chassis,can be transported with drill rod,made the transportation easily and economically; Cummins electronic control turbo supercharged engine meeting Euro Ⅲ emission standard,saving energy,envioronmental protection and strong power; The type A
Parameters
| Item | Unit | Value |
|---|---|---|
| Max. Drilling Diameter (mm) | — | Æ1400 |
| Max. Drilling Depth | m | 25 |
| Engine (Model) | — | / |
| Rated Power | kW | 116/2000 |
| Rotary Drive (Max. output torque) | — | kN .m |
| Rotary speed | r/min | 9～40 |
| Pull-Down Cylinder | kN | Max.pull-down piston push |
| Max.pull-down piston pull | kN | 100 |
| Max.pull-down piston stroke | mm | 2000 |
| Main Winch | kN | Max.pulling force |
| Max. single-rope speed | m/min | 70 |
| Diameter of the steel wire rope | mm | 20 |
| Auxiliary Winch | kN | Max.pulling force |
| Max. single-rope speed | m/min | 54 |
| Diameter of the steel wire rope | mm | 16 |
| Drilling mast | — | Left/right inclination of mast |
| Front inclination of mast | ° | ±5 / 5 |
| Rotary table slewing angle | ° | 240 |
| Hydraulic System | MPa | Working pressure |
| Traveling | km/h | Max. traveling speed |
| Min.turning diameter | m | 21 |
| Min.ground claerance | mm | 340 |
| Approach angle | ° | 21 |
| Departure angle | ° | 18 |
| Max.grade ability | % | 30 |
| Overall Drilling Weight | t | 32 |
| Dimension (Working condition(L × W × H)) | — | mm |
| Transportation condition(L × W × H) | mm | 10740×2500×4380 |
