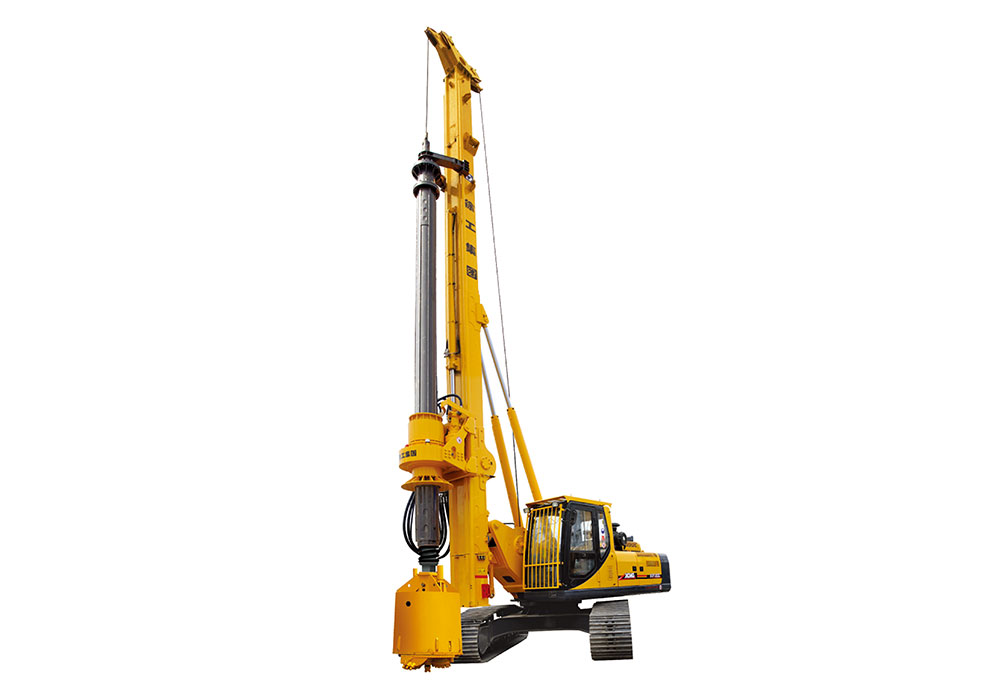

Products / Drilling / Rotary drilling rig / XR150D III Parameters Max.Drilling Diameter Item Unit Value Uncased (mm) — φ1500 Max.Drilling Depth m 56
Dimension Item Unit Value Working condition L × W × H mm 7550×4200×19040 Transportation condition L × W × H mm 13150×2960×3140 Overall Drilling Weight — 49
Engine Item Unit Value Model — CUMMINS QSB7-C202 Rated Power kW 150/2050
Hydraulic System Item Unit Value Working pressure MPa 35
Rotary Drive Item Unit Value Max. output torque kN.m 150 Rotary speed r/min 7~33
Pull-Down Cylinder Item Unit Value Max.pull-down piston push kN 120 Max.pull-down piston pull kN 160 Max.pull-down piston stroke mm 3500
Main Winch Item Unit Value Max.pulling force kN 160 Max. single-rope speed m/min 72 Diameter of the steel wire rope mm 26
Auxiliary Winch Item Unit Value Max. Pulling force kN 50
Drilling mast Item Unit Value Left/right inclination of mast ° 42432 Front inclination of mast ° 5 Rotary table slewing angle ° 360
Traveling Item Unit Value Max. traveling speed km/h 2.5 Max.grade ability % 40
Crawler Item Unit Value Track shoe width mm 700 Distance between tracks mm 2960～4200 The length of crawler mm 4310 Average ground pressure kPa 83
