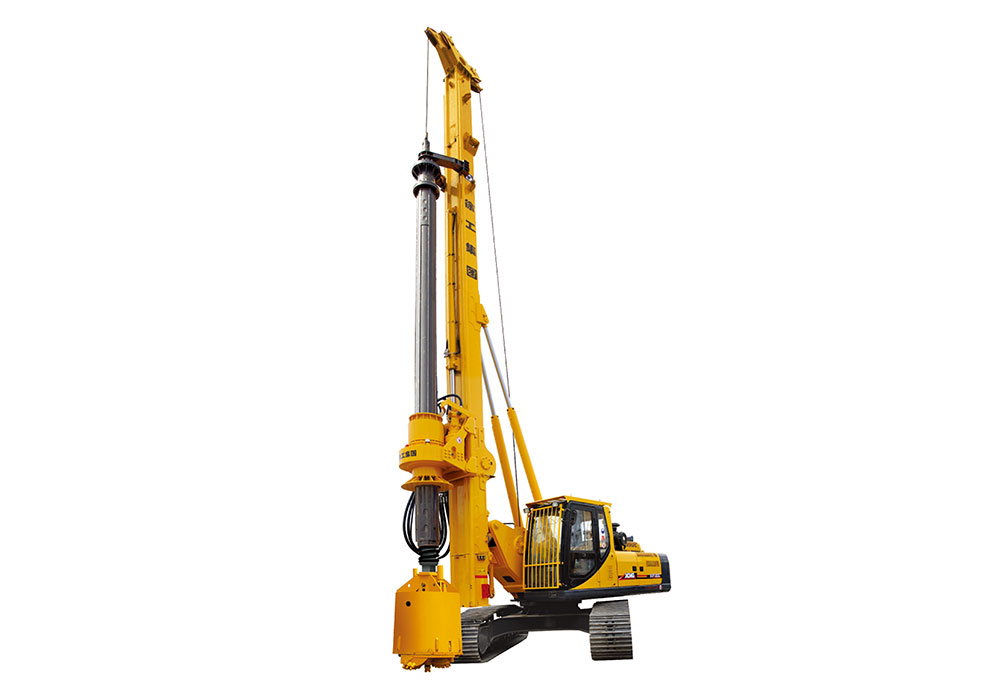

Products / Drilling / Rotary drilling rig / XR150D II Parameters Max.Drilling Diameter Item Unit Value Uncased (mm) — φ1500 Max.Drilling Depth m 55
Dimension Item Unit Value Working condition L × W × H mm 7122×4100×18945 Transportation condition L × W × H mm 13050×3100×3060 Overall Drilling Weight — 47.5
Engine Item Unit Value Model — CUMMINS B5.9-C Rated Power kW 133/2000
Hydraulic System Item Unit Value Working pressure MPa 32
Rotary Drive Item Unit Value Max. output torque kN.m 150 Rotary speed r/min 8~30
Pull-Down Cylinder Item Unit Value Max.pull-down piston push kN 120 Max.pull-down piston pull kN 160 Max.pull-down piston stroke mm 3500
Main Winch Item Unit Value Max.pulling force kN 155 Max. single-rope speed m/min 75 Diameter of the steel wire rope mm 28
Auxiliary Winch Item Unit Value Max. Pulling force kN 50
Drilling mast Item Unit Value Left/right inclination of mast ° 42432 Front inclination of mast ° 5 Rotary table slewing angle ° 360
Traveling Item Unit Value Max. traveling speed km/h 3.2 Max.grade ability % 40
Crawler Item Unit Value Track shoe width mm 700 Distance between tracks mm 3100～4100 The length of crawler mm 4323 Average ground pressure kPa 72.3
