Telescopic boom aerial working platform

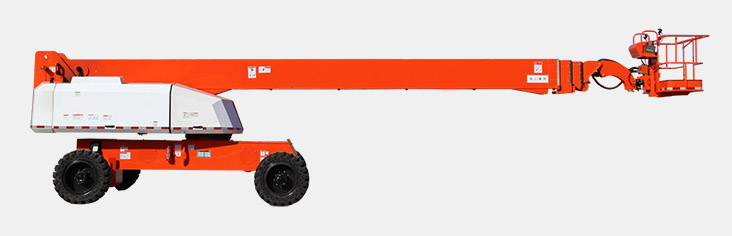

CMZB40
1. Wide operating range: 360° full direction operation at the height from 0~143 ft (43.6 m), with a horizontal reach max. by 80 ft (24.38 m) . 2. Large load capacity: The lift capacity is 1058 lbs (480 kg); the platform can hold 3 operators. 3. Powerful driving force: The engine
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMZB40 |
| Power source | — | Original Cummins/Perkins Engine |
| Power | — | 60 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 129 ft (39.3 m) |
| Working height max. | — | 135 ft (41.3 m) |
| Horizontal reach max. | — | 80 ft (24.38 m) |
| Length - stowed | — | 45 ft 1 in (13.75 m) |
| Width - stowed | — | 8 ft 2 in (2.49 m) |
| Height - stowed | — | 10 ft 1 in (3.08 m) |
| Wheelbase | — | 12 ft 5 in (3.81 m) |
| Ground clearance | — | 2 ft 1 in (0.65 m) |
| Platform size (L*W*H) | — | 6 ft*2 ft 5 in*3 ft 6 in (1.83 m*0.76 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 750 lbs (340 kg) - Unlimited1058 lbs (480 kg) - Limited |
| Turntable rotation | — | 360° continuous |
| Platform rotation | — | 160° |
| Drive speed - stowed | — | 0～2.7 mph (0~4.4 km/h) |
| Drive speed - raised | — | 0～0.7 mph (0~1.1 km/h) |
| Gradeability | — | 40% |
| Turning radius - inside | — | 14 ft 3 in (4.37 m) |
| Turning radius - outside | — | 22 ft 3 in (6.81 m) |
| Turntable tailswing | — | 5 ft 5 in (1.68 m) |
| Max. allowable slope | — | 3° |
| Max. noise on normal use | — | 82 dB(A) |
| Drive & steer model | — | 4 WD * 4 WS |
| Tire size / type | — | 385/65 - 24 / 10 solid |
Power
| Item | Unit | Value |
|---|---|---|
| Fuel tank capacity | — | 52.83 gal (200 L) |
| Control voltage | — | 12 VDC |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 47532 lbs (21560 kg) |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
