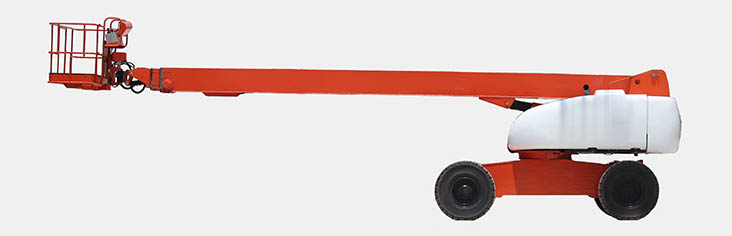

Telescopic boom aerial working platform
CMZB25
1. Wide operating range: 360° full direction operation at the height from 0~ 89 ft 2 in (27.2 m) , with a horizontal outreach by 71 ft 9 in (21.9 m) . 2. Large load capacity: The maximum load capacity is 1058 lbs (480 kg) ; the platform can hold 2 operators. 3. Powerful driving f
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | CMZB25 |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height | — | 82 ft 7 in (25.2 m) |
| Working height | — | 89 ft 2 in (27.2 m) |
| Horizontal outreach | — | 71 ft 9 in (21.9 m) |
| Length (stowed) | — | 37 ft 2 in (11.35 m) |
| Width (stowed) | — | 8 ft 2 in (2.49 m) |
| Height (stowed) | — | 9 ft 2 in (2.8 m) |
| Ground clearance | — | 1 ft 4 in (0.43 m) |
| Wheel base | — | 9 ft 8 in (3 m) |
| Size of platform (L*W*H) | — | 4 ft 8 in *2 ft 8 in * 4 ft 1 in (1.45 m *0.85 m *1.24 m) |
Performance Data
| Item | Unit | Value |
|---|---|---|
| Platform Capacity | — | 2 |
| Load capacity of platform | — | 1058 lbs (480 kg) |
| Turntable rotation | — | 360° |
| Platform rotation | — | 160° |
| Driving speed (stowed) | — | 0～3.2 mph (5.2 km/h) |
| Driving speed (raised) | — | 0～0.7 mph (1.1 km/h) |
| Gradeability | — | 30% (2WD) 45% (4WD) |
| Outside turning radius | — | 19 ft 2 in (5.84 m) |
| Inside turning radius | — | 8 ft (2.44 m) |
| Tail swing | — | 4 ft 3 in (1.32 m) |
| Allowable slope | — | 3° |
| Drive * steering | — | 2 WD * 2 WS /4 WD * 2 WS |
| Tire size/type | — | 12.00 - 20 / Solid |
Engine
| Item | Unit | Value |
|---|---|---|
| Power source | — | diesel engine |
| Drive Type | — | Hydraulic pressure |
| Volume of hydraulic oil tank | — | 160 L |
| Power | — | 60 KW |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 33775 lbs (15320 kg) - (2WD)33929 lbs (15390 kg) - (4WD) |
| Standards compliant | — | CE、ISO、GOST |
