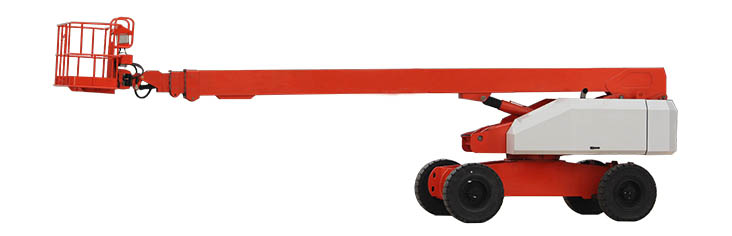

Telescopic boom aerial working platform
CMZB26
1. Wide operating range: 360° full direction operation at the height from 0~ 91 ft (27.8 m) , with a horizontal reach max. by 72 ft 2 in (22 m) . 2. Large load capacity: The lift capacity is 1058 lbs (480 kg) ; the platform can hold 2 operators. 3. Powerful driving force: The eng
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMZB26 |
| Power source | — | Original Cummins/Perkins Engine |
| Power | — | 60 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 85 ft (25.8 m) |
| Working height max. | — | 91 ft (27.8 m) |
| Horizontal reach max. | — | 72 ft 2 in (22 m) |
| Length - stowed | — | 37 ft 9 in (11.54 m) |
| Width - stowed | — | 8 ft 2 in (2.49 m) |
| Height - stowed | — | 9 ft 4 in (2.88 m) |
| Wheelbase | — | 9 ft 8 in (3.0 m) |
| Ground clearance | — | 1 ft 3 in (0.41 m) |
| Platform size (L*W*H) | — | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 551 lbs (250 kg) - Unlimited1058 lbs (480 kg) - Limited |
| Turntable rotation | — | 360° continuous |
| Platform rotation | — | 160° |
| Drive speed - stowed | — | 0～3.2 mph (0~5.2 km/h) |
| Drive speed - raised | — | 0～0.7 mph (0~1.1 km/h) |
| Gradeability | — | 30% (2WD) 45% (4WD) |
| Turning radius - inside | — | 8 ft (2.44 m) |
| Turning radius - outside | — | 19 ft 2 in (5.84 m) |
| Turntable tailswing | — | 4 ft 8 in (1.46 m) |
| Max. allowable slope | — | 3° |
| Max. noise on normal use | — | 82 dB(A) |
| Drive & steer model | — | 2 WD * 2 WS / 4 WD * 2 WS |
| Tire size / type | — | 12.00 - 20 / solid |
Power
| Item | Unit | Value |
|---|---|---|
| Fuel tank capacity | — | 42.27 gal (160 L) |
| Control voltage | — | 12 VDC |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 36248 lbs (16442 kg) - 2WD36447 lbs (16532 kg) - 4WD |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
