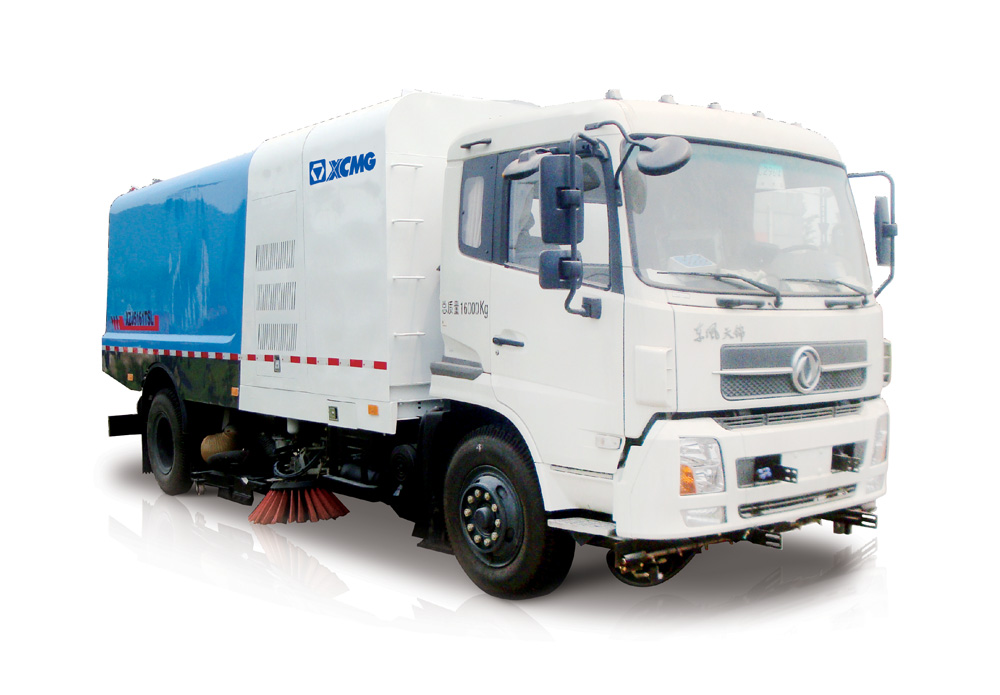

Sweeper truck
XZJ5161TSLD5
XZJ5161TSLD5 — Sweeper truck. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Vehicle model | — | XZJ5161TSLD5 |
| Chassis models | — | DFL1160BX1V |
| engine Model | — | ISDe 180 50ISDe 210 50 |
| wheel base | mm | 5000 |
| maximum total weight | Kg | 15800 |
| Overall dimensions(L*W*H) | mm | 8500*2475*3245 |
| Curb weight | Kg | 11830 |
| Auxiliary engine type | — | QSBC160-30(The Ⅲ emission standards)EQB160-20(The Ⅱ emission standards) |
| Auxiliary engine power | Kw | 118 |
| Container capacity | m³ | 9 |
| Tank Volume | m³ | 5 |
| The lifting Angle ((°)) | — | ≥45 |
| Max. working width | m | 3.5 |
| Operating speed | km/h | 42824 |
| Cleaning efficiency ((%)) | — | ≥95 |
| max. suction granularity | mm | 120 |
| Wet to a single operation time ((h)) | — | ≥6 |
| Model of pump | — | 66LP |
| System pressure | Mpa | 10 |
| flux | l/min | 41 |
| Chuck width (unfold) | mm | 3000 |
