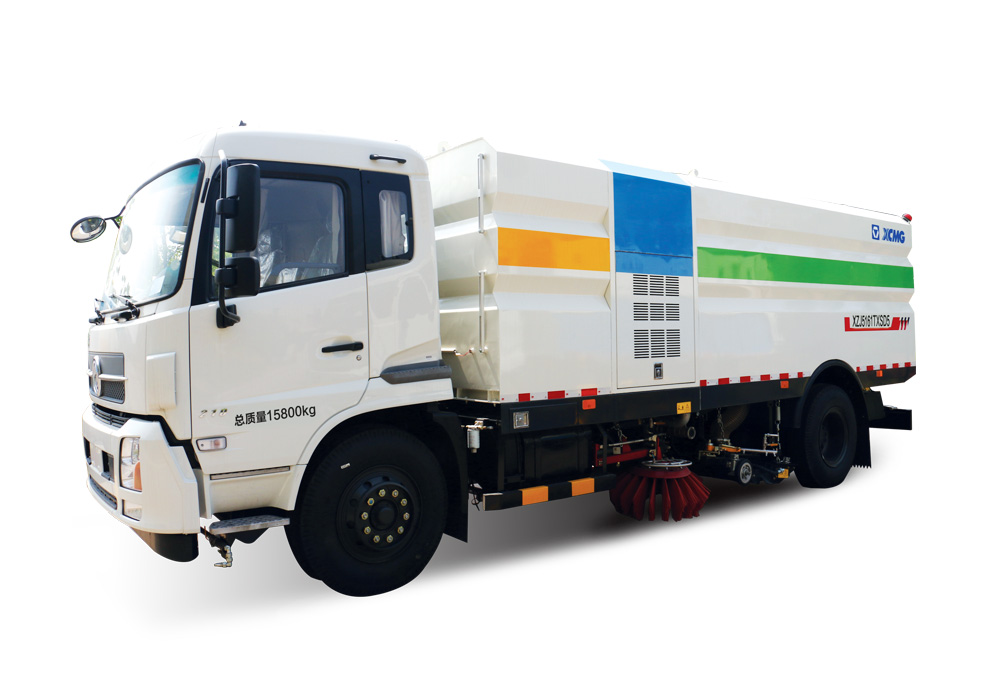

Sweeper truck
XZJ5160TXSD5
XZJ5160TXSD5 — Sweeper truck. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Vehicle model | — | XZJ5160TXSD5 |
| Chassis models | — | DFL1160BX1V(The Ⅴ emission standards) |
| Engine Model | — | EQ6BT5.9/ QSB5.9-C160-30(The Ⅲ emission standards) |
| Overall dimensions(L*W*H) | mm | 8612×2490×2980 |
| Curb weight | kg | 11980 |
| Operating weight | kg | 15800 |
| Clean sweep width | m | 3.5 |
| Wash the sweep speed | Km/h | 3~20 |
| Cleaning width | m | 3.5 |
| Sweeping Speed | Km/h | 3~20 |
| The cleaning water pressure rating | MPa | 10 |
| Cleaning water rated flow | L/min | 137 |
| The Max cleaning Capacity | ㎡/h | 70000 |
| Working Efficiency ((%)) | — | ≥95 |
| Discharging Angle ((°)) | — | ≥50 |
| Clear water tank capacity | m³ | 9 |
| Garbage Tank capacity | m³ | 7 |
