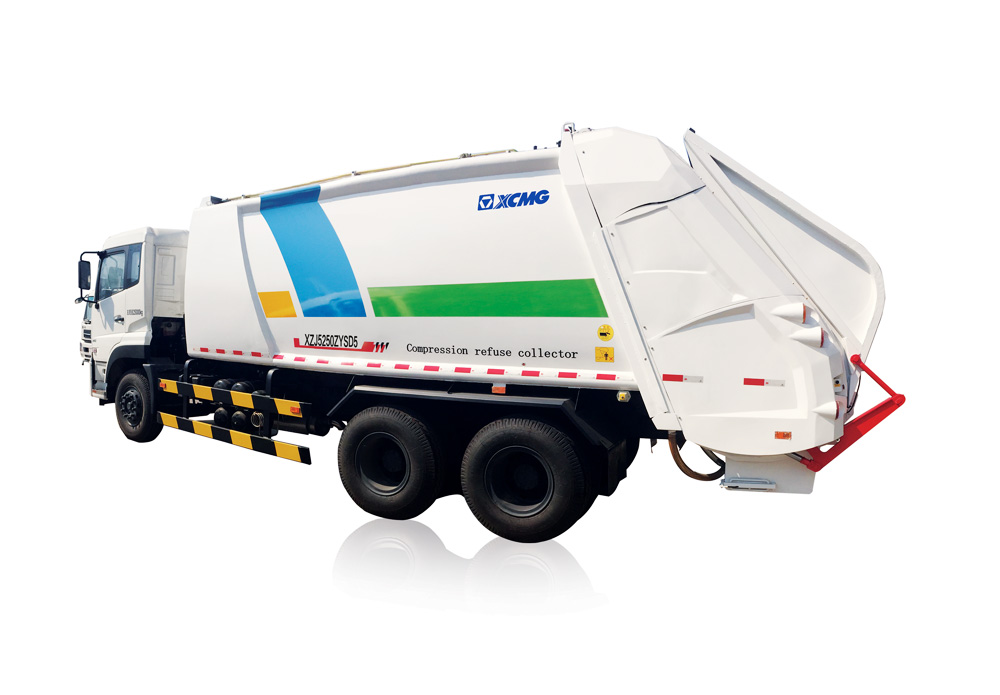

Garbage copressing truck
XZJ5250ZYSD5
XZJ5250ZYSD5 — Garbage copressing truck. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Vehicle parameters | — | DFL1250A13 |
Chassis models
| Item | Unit | Value |
|---|---|---|
| Engine type | — | ISD245 50，ISD270 50 |
| tonnage | T | 12 |
| Length | mm | 10115 |
| Wideth | mm | 2500 |
| Height | mm | 3380/3600/3690 |
| Approach Angle/Angle of departure | ° | 18/13 |
| Maximum weight | kg | 25000 |
| Vehicle servicing weight | kg | 14570 |
| Rated load | kg | 10300 |
| Carriage Volume | m³ | 19 |
| Fill in the feeder volume | m³ | 2.6 |
| Drain tank capacity | L | 360 |
| Deputy drain tank capacity | L | 228 |
| Bucket Capacity | L | 1634 |
| ground clearance | mm | 1225 |
| Wideth | mm | 2000 |
| Height | mm | 1650 |
| The cycle time of loading ((s)) | — | 18～20 |
| The tailgate ascending Angle ((°)) | — | ～105° |
| Rated hydraulic pressure | MPa | 19.6 |
| Discharging time ((s)) | — | ≤40 |
| The double barrel dumping Angle ((°)) | — | ≥45° |
| Loader lift time ((s)) | — | 14 |
| Max.shift force | kN | 419 |
| Max.broken compressive force | kN | 163 |
| Compression ratio | — | 1:3 |
| Living garbage compression density | T/m³ | 0.7~0.8 |
