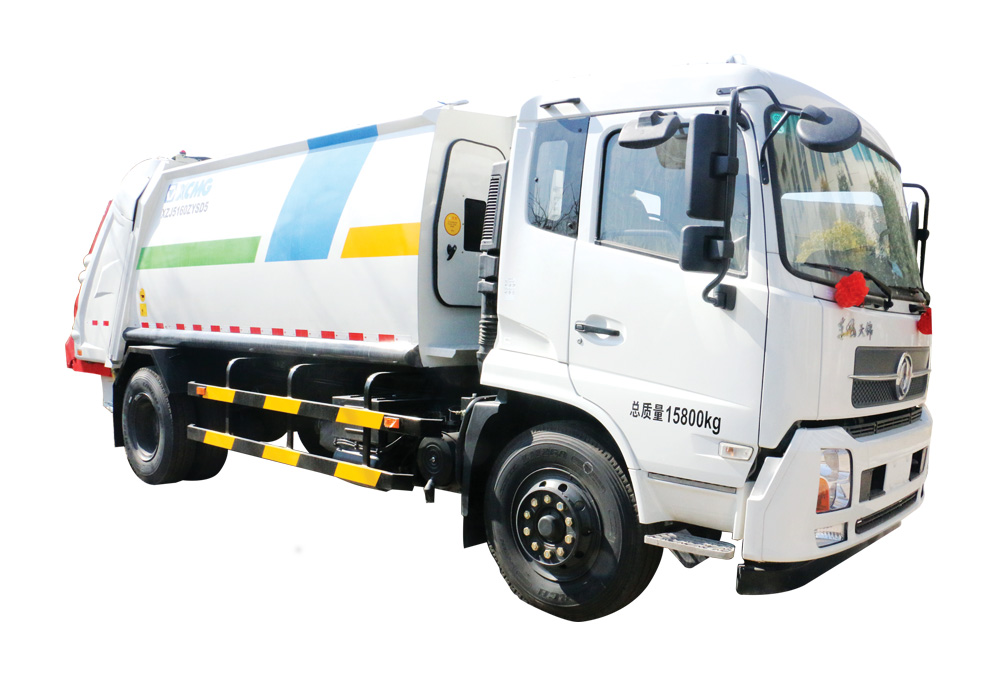

Garbage copressing truck
XZJ5160ZYSD5
XZJ5160ZYSD5 — Garbage copressing truck. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Vehicle parameters | — | DFL1160BX1V |
Chassis models
| Item | Unit | Value |
|---|---|---|
| Engine type | — | ISD210 50，ISD190 50，ISD180 50，EQH180-52，EQH180-53，ISB180 50，ISD270 50，ISB210 50 |
| tonnage | T | 8 |
| Length | mm | 8405(Great device)，8500(Rolling barrel bucket) |
| Wideth | mm | 2470 |
| Height | mm | 2965 |
| Approach Angle/Angle of departure | ° | 20/21 |
| Maximum weight | kg | 15800 |
| Vehicle servicing weight | kg | 8950(Great device)，8970(Rolling barrel bucket) |
| Rated load | kg | 6655(Great device)，6635(Rolling barrel bucket) |
| Carriage Volume | m³ | 12.5 |
| Fill in the feeder volume | m³ | 1.75 |
| Drain tank capacity | L | 350 |
| Deputy drain tank capacity | L | 228 |
| Bucket Capacity | L | 1400 |
| ground clearance | mm | 1040 |
| Wideth | mm | 1680 |
| Height | mm | 900 |
| The cycle time of loading ((s)) | — | 16～18 |
| The tailgate ascending Angle ((°)) | — | ～95° |
| Rated hydraulic pressure | MPa | 19.6 |
| Discharging time ((s)) | — | ≤25 |
| The double barrel dumping Angle ((°)) | — | ≥45° |
| Loader lift time ((s)) | — | 13 |
| Max.shift force | kN | 226 |
| Max.broken compressive force | kN | 136 |
| Compression ratio | — | 1:3 |
| Living garbage compression density | T/m³ | 0.7~0.8 |
