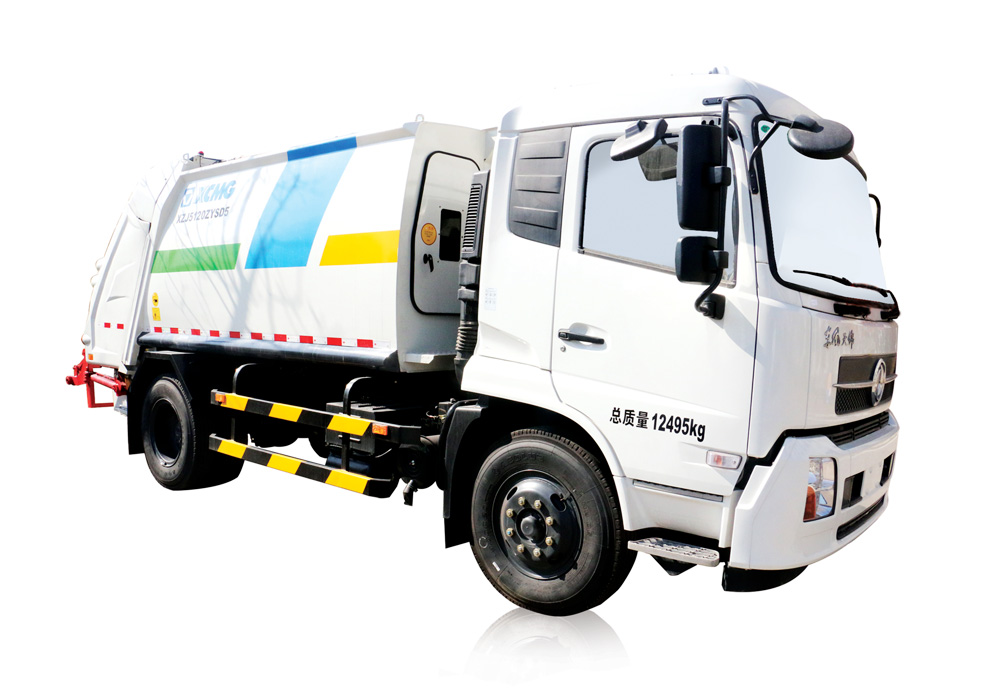

Garbage copressing truck
XZJ5120ZYSD5
XZJ5120ZYSD5 — Garbage copressing truck. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Vehicle parameters | — | DFL1120B21 |
Chassis models
| Item | Unit | Value |
|---|---|---|
| Engine type | — | ISD180 50,ISD160 50,ISB180 50 |
| tonnage | T | 5 |
| Length | mm | 7510(Great device)，7860(Rolling barrel )，7610(bucket) |
| Wideth | mm | 2470 |
| Height | mm | 2990 |
| Approach Angle/Angle of departure | ° | 20/19 |
| Maximum weight | kg | 12495 |
| Vehicle servicing weight | kg | 7930(Great device)，8295(Rolling barrel )，8120(bucket) |
| Rated load | kg | 4370(Great device)，4005(Rolling barrel )，4190(bucket) |
| Carriage Volume | m³ | 10 |
| Fill in the feeder volume | m³ | 1.75 |
| Drain tank capacity | L | 350 |
| Deputy drain tank capacity | L | 228 |
| Bucket Capacity | L | 1400 |
| ground clearance | mm | 1040 |
| Wideth | mm | 1680 |
| Height | mm | 900 |
| The cycle time of loading ((s)) | — | 16～18 |
| The tailgate ascending Angle ((°)) | — | ～95° |
| Rated hydraulic pressure | MPa | 19.6 |
| Discharging time ((s)) | — | ≤25 |
| The double barrel dumping Angle ((°)) | — | ≥45° |
| Loader lift time ((s)) | — | 13 |
| Max.shift force | kN | 226 |
| Max.broken compressive force | kN | 136 |
| Compression ratio | — | 1:3 |
| Living garbage compression density | T/m³ | 0.7~0.8 |
