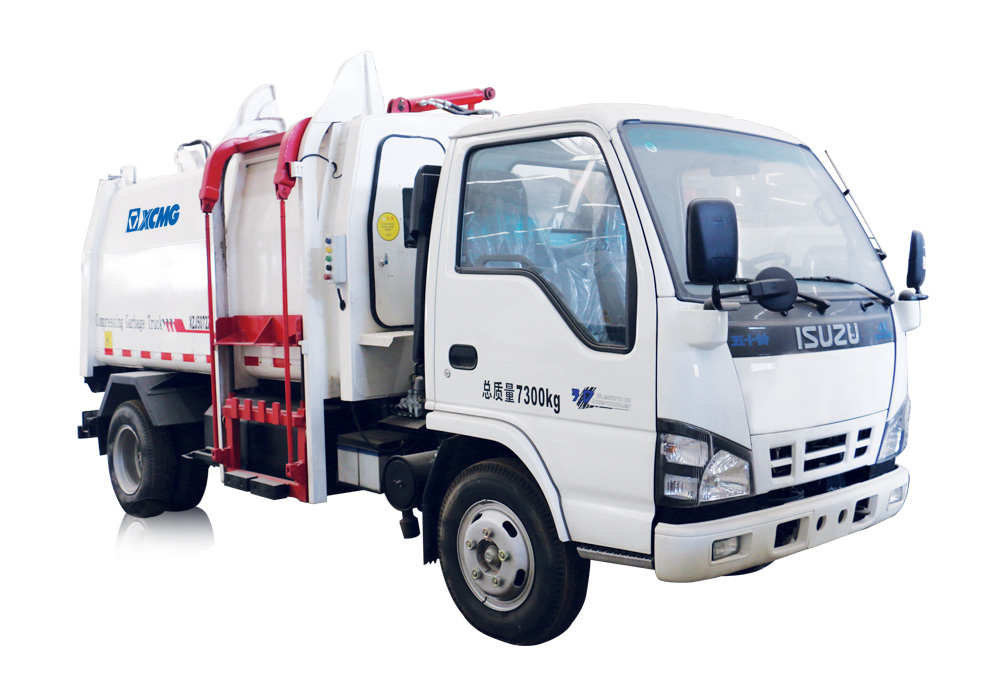

Garbage copressing truck
XZJ5070ZYSQ5
XZJ5070ZYSQ5 — Garbage copressing truck. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Vehicle parameters | — | QL1070A5HAY |
Chassis models
| Item | Unit | Value |
|---|---|---|
| Engine type | — | 4KH1CN5HS |
| tonnage | T | 3 |
| Length | mm | 6365(Great device)，6750(Rolling barrel )，6645(bucket) |
| Wideth | mm | 1950 |
| Height | mm | 2400 |
| Approach Angle/Angle of departure | ° | 24/12 |
| Maximum weight | kg | 7300 |
| Vehicle servicing weight | kg | 4920(Great device)，5090(Rolling barrel )，5040(bucket) |
| Rated load | kg | 2250(Great device)，2080(Rolling barrel )，2130(bucket) |
| Carriage Volume | m³ | 6 |
| Fill in the feeder volume | m³ | 1.1 |
| Drain tank capacity | L | 200 |
| Deputy drain tank capacity | L | 85 |
| Bucket Capacity | L | 643 |
| ground clearance | mm | 990 |
| Wideth | mm | 1430 |
| Height | mm | 780 |
| The cycle time of loading ((s)) | — | 14～16 |
| The tailgate ascending Angle ((°)) | — | ～95° |
| Rated hydraulic pressure | MPa | 16.2 |
| Discharging time ((s)) | — | ≤25 |
| The double barrel dumping Angle ((°)) | — | ≥45° |
| Loader lift time ((s)) | — | 13 |
| Max.shift force | kN | 103 |
| Max.broken compressive force | kN | 91 |
| Compression ratio | — | 1:3 |
| Living garbage compression density | T/m³ | 0.7~0.8 |
