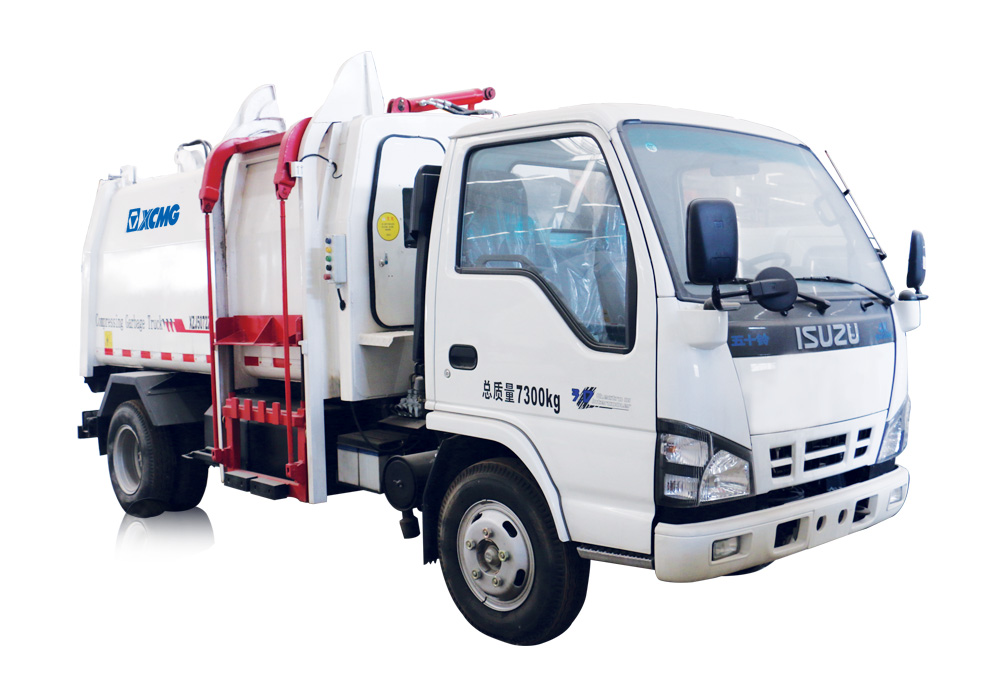

Garbage copressing truck
XZJ5070ZYSH5
XZJ5070ZYSH5 — Garbage copressing truck. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Vehicle parameters | — | HFC1070P93K1C3ZV |
| Engine type | — | WP3Q130E50 |
| tonnage | T | 3 |
| Length | mm | 5675(Side mounted) |
| Wideth | mm | 1910(Side mounted) |
| Height | mm | 2650(Side mounted) |
| Approach Angle/Angle of departure | ° | 27/22 |
| Maximum weight | kg | 7360 |
| Vehicle servicing weight | kg | 4440 |
| Rated load | kg | 2790 |
| Carriage Volume | m³ | 5.6 |
| Drain tank capacity | L | 130 |
| Deputy drain tank capacity | L | 30 |
| Feeding time ((s)) | — | 15~18 |
| compression time ((s)) | — | 18～20 |
| Discharging time ((s)) | — | ≤25 |
| The roll barrel dumping Angle ((°)) | — | ≥45° |
| The back door opened the Angle | ° | 90 |
| Rated hydraulic pressure | MPa | 16.2 |
| Max.shift force | kN | 102 |
| Compression ratio | — | 0.04375 |
| Living garbage compression density | T/m³ | 0.7~0.8 |
| Operating mode | — | Manual automatic one |
| Types of control | — | Electric-hydraulic control |
| Compression way | — | Direct pressure type |
| Can be the optional standard barrel type | — | 240L(single-barrel)or 330L Standard steel drum(single-barrel) |
