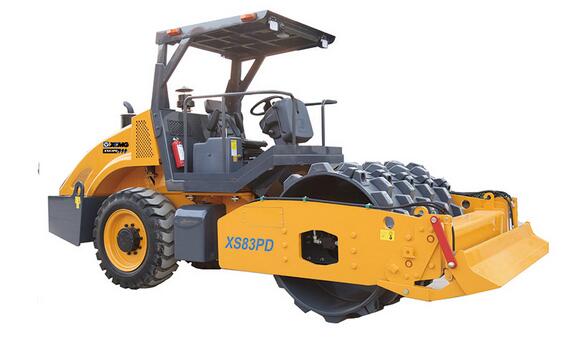

Vibratory compactor
XS83PD
XS83PD — Vibratory compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Drum module weight | kg/ib | 4070/8972 |
| Wheel module weight | kg/ib | 4130/9105 |
| Tyre specification | — | 16/70-24-14PR |
| Theoretical grade ability | % | 40 |
| Width of drum | mm/in | 1680/66.14 |
| Diameter of drum | mm/in | 1220/48.03 |
| Thickness of drum shell | mm/in | 22/0.87 |
| Static linear load | — | N/cm/ib/in |
| Amplitude:High/Low | mm/in | 1.45/0.057;0.72/0.028 |
| Frequency | Hz | 30/40 |
| Centrifugal force at high amplitude | KN/ib | 107/24070 |
| Centrifugal force at low amplitude | KN/ib | 94/21146 |
| Speed range | Km/h/mph | 0-10/0-5.5 |
| Ground clearance | mm/in | 410 |
| Inner turning radius | mm/in | 3260/128.34 |
| Outer turning radius | mm/in | 4950/193.88 |
