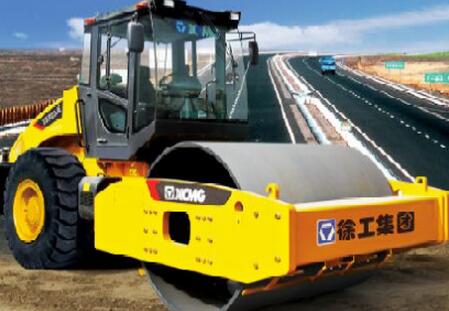

Vibratory compactor
XS203JE
XS203JE — Vibratory compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| working weight | kg | 20000 |
| Distribution of driving wheel weight | kg | 10000 |
| Vibration wheel distribution weight | kg | 10000 |
| Static linear load | N/cm | 470 |
| Vibration frequency | Hz | 28/33 |
| theoretical Vibration | mm | 1.9/0.95 |
| Vibration force | kN | 353/245 |
| Speed range (forward) | — | Ⅰ |
| Ⅱ | — | 5.25 |
| Ⅲ | — | 11.12 |
| backward (Ⅰ) | — | 2.66 |
| Ⅱ | — | 5.27 |
| wheel base | mm | 3180 |
| Compaction width | mm | 2130 |
| Theoretical gradeability | % | 30 |
| minimum turning radius | mm | 6500 |
| Drum diameter | mm | 1600 |
| minimum ground clearance | mm | 440 |
| rated speed | r/min | 1800 |
| rated power | kW | 128 |
| Overall dimensions (L*W*H) | mm | 6220×2390×3200 |
| vibration system pressure | MPa | 18/35 |
| steering system pressure | MPa | 16 |
