Vibratory compactor

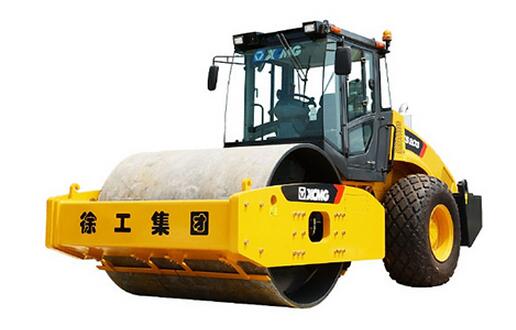

XS203
XS203 — Vibratory compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| The front wheel distribution weight | kg | 13500 |
| The rear wheel distribution weight | kg | 6500 |
| rated power | kW | 134 |
| rated speed | r/min | 2000 |
| Low frequency | Hz | 28 |
| Nominal Vibration (Large (low frequency)) | — | (mm) |
| Small (high frequency) | mm | 0.93 |
| Vibration force (Large (low frequency)) | — | (kN) |
| Small (high frequency) | kN | 255 |
| Driving capacity (speed) | — | Ⅰ |
| Ⅱ | km/h | 0～5.3. |
| Ⅲ | km/h | 0～6.7 |
| Ⅳ | km/h | 0～10.4 |
| Outside the minimum turning radius | mm | 6500 |
| Theoretical gradeability | % | 50 |
| steering angle | ° | ±33 |
| oscillating angle | ° | ±10 |
| size | length | complete machine size |
| width | mm | 2430 |
| height | mm | 3200 |
| wheel base | mm | 3160 |
| minimum ground clearance | mm | 466 |
| Vibration wheel diameter | mm | 1600 |
| Vibration wheel width | mm | 2130 |
