Vibratory compactor

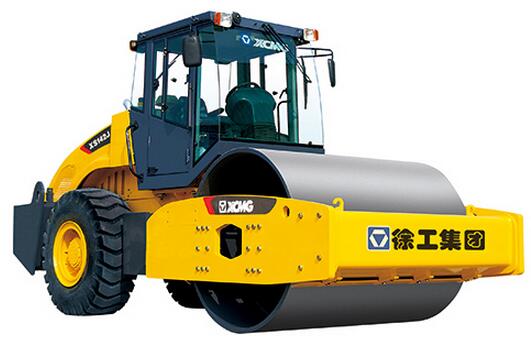

XS162J
XS162J — Vibratory compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| working paremeters — Static linear load | N/cm | 362 |
| working paremeters — Vibration frequency | Hz | 28 |
| working paremeters — theoretical Vibration | mm | 1.9/0.95 |
| working paremeters — Vibration force | Kn | 290/145 |
| Speed range — front I | km/h | 2.54 |
| Speed range — front Ⅱ | km/h | 4.97 |
| Speed range — front Ⅲ | km/h | 10.51 |
| Speed range — rear Ⅰ | km/h | 2.52 |
| Speed range — rear Ⅱ | km/h | 4.98 |
| Speed range — Theoretical gradeability | % | 30 |
| Speed range — minimum turning radius | mm | 6500 |
| weight parameters — working weight | kg | 16000 |
| weight parameters — Distribution of driving wheel weight | kg | 8300 |
| weight parameters — Vibration wheel distribution weight | kg | 7700 |
| Size parameters — Overall dimensions (L*W*H) | mm | 6220×2340×3200 |
| Size parameters — wheel base | mm | 3120 |
| Size parameters — Compaction width | mm | 2130 |
| Size parameters — steering angle | ° | ±33 |
| Size parameters — oscillating angle | ° | ±11 |
| Size parameters — minimum ground clearance | mm | 448 |
| engine — rated speed | r/min | 1800 |
| engine — rated power | Kw | 115 |
Speed range
| Item | Unit | Value |
|---|---|---|
| The braking distance of driving ((m)) | — | <4.6 |
engine
| Item | Unit | Value |
|---|---|---|
| model | — | SC8D156.2G2B1 |
| emissions | — | off-highway, Naitonal II emission standard |
