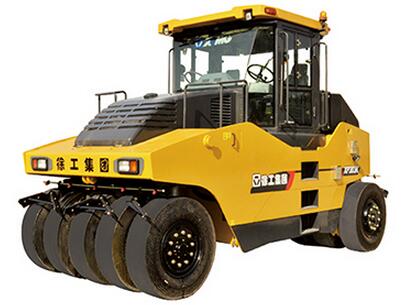

Tyre compactor
XP303K
XP303K — Tyre compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Min Operating weight | kg | 15000 |
| Max Operating weight | kg | 30300 |
| Water counterweight weight | kg | 650 |
| Counterweight weight | kg | 14550 |
| Compacting width | mm | 2750 |
| Tire amount of overlap | mm | 45 |
| Overlapping of front&rear tyre | kPa | 200～460 |
| Ground pressure | mm | 9000 |
| The front wheel swing quantity | mm | ±50 |
| Minimum ground clearance | mm | 300 |
| Gradeability in theory (％) | — | 20 |
| Wheelbase | mm | 3840 |
| Speed — I speed | km/h | 0～8 |
| Speed — II speed | km/h | 0～17 |
| Speed — Rated power | kW | 132 |
| Speed — Rated rotating speed | r/min | 1800 |
| Speed — Length ( watering) | mm | 4925 |
| Speed — Length(optional Spray oil) | mm | 5015 |
| Speed — Width | mm | 2851 |
| Speed — Height | mm | 3385 |
| Speed — Fuel tank capacity | L | 170 |
| Speed — Water thank capacity | L | 650 |
Speed
| Item | Unit | Value |
|---|---|---|
| Engine model | — | SC7H180.2G3 |
| Engine oil consumption (g/kW·h) | — | ≤235 |
| Tyre size | — | 13.00-20-16PR |
| Tyre tread | — | Smooth |
| Tyre qty' | — | Front 5 rear 6 |
