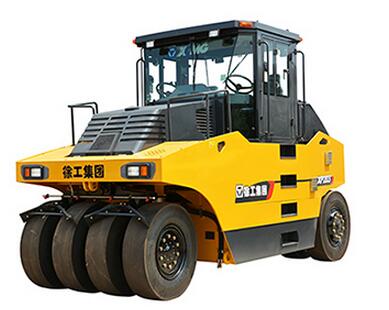

Tyre compactor

XP203

XP203 is a pneumatic tyre compactor with 20000 kg with 20000 kg. XP203 pneumatic tire roller is an indispensable equipmentfor the construction of high grade highway, large-scalefoundation rolling and all kinds of filling and compaction.Its unique kneading and compaction performance makes it irreplaceable by other machine models. XP203 is a self-propelled static roller, with efficient compaction ability and excellent compaction perfommance, applies tocompaction asphalt pavement, base layer, subbase layerand filling. lt is widely used in compaction operations forall kinds of traffic roads, airports, ports, dams and other large engineering, specially for high grade highway pavement.

Parameters

Item Unit Value
Engine — Shangchai
Emission — Stage Ⅱ
Operating Weight kg 20000
Dimensions mm 4,780 x 2,232 x 3,340
Working speed km/h 0~4.5;0~8.7;0~18.4 / 0~4.5;0~8.7
Gradeability % 30
Wheelbase mm 3700
Drum width mm 2055
Rated power kW 86
