Motor grader

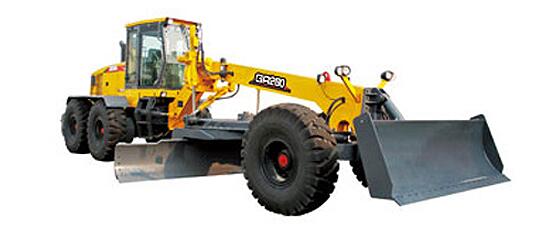

GR260

The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, t

Request a quote

Parameters

Basic specification

Item Unit Value
Engine model — 6CTA8.3—C260
Rated power/speed — 194kW/2200rpm
Dimension(LxWxH) — 10280×3100×3550mm
Operating weight(Standard) — 24000kg

Performance specification

Item Unit Value
Travelling speed ,forward — 5、8、11、19、23、38 km/h
Travelling speed ,reverse — 5、11、23 km/h
Tractive force(f=0.8) — 132KN
Max. gradeability — 36%
Tire inflation pressure — 350 MPa
Working hydraulic pressure — 18 MPa
Transmission pressure — 1.3～1.8MPa

Operating specification

Item Unit Value
Max. steering angle of front wheels — Left / Right 50°
Max. lean angle of front wheels — Left / Right 17°
Max. oscillation angle of front axle — Up / down 15°
Max. oscillation angle of balance box — Before / after 15
Frame articulation angle — Left / Right 27°
Min. turning radius using articulation — 8.3m

Biade

Item Unit Value
Maximum lift above ground — 450mm
Maximum depth of cutting — 500mm
Maximum blade position angle — 90°
Blade cutting angle — 28°—70°
Circle reversing rotation — 360°
Moldboard width X height — 4572×787mm
