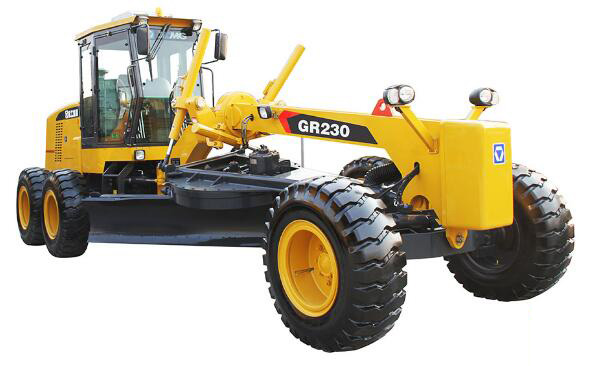

Motor grader
GR230
GR230 — Motor grader. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| General Data (Engine model) | — | SC8D200G2B1 |
| Rated power | kw/rpm | 147/2300 |
| Dimension (standard) | mm | 8932×2625×3420 |
| weight (standard) | kg | 16000 |
| Performance Data (Front speed) | — | 5、8、11、19、23、38 |
| Reverse Speed | km/h | 5、11、23 |
| Break force f=0.75 | kN | 87 |
| max grade ability | % | 20% |
| mini turning radius | m | 7.3 |
| Blade (Max lifting height) | — | 450 |
| Max depth | mm | 500 |
| Max lean angles | ° | 90 |
| Cutting angle | ° | 28 —70 |
| Swing Angle | ° | 360 |
| blade lenght&height | mm | 4270×610mm |
