Motor grader

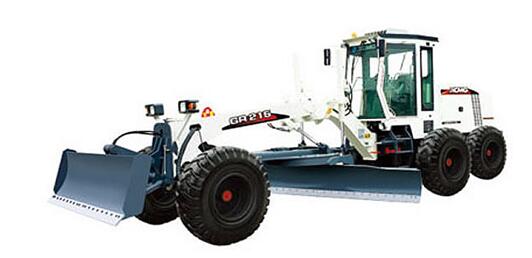

GR215A
Basic specificationEngine modelQSB6.7 6CTA8.3Rated power/speed164kW/2200rpm 160kW/2200rpmDimen
Parameters
Basic specification
| Item | Unit | Value |
|---|---|---|
| Engine model | — | QSB6.7 6CTA8.3 |
| Rated power/speed | — | 164kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | — | 9180×2625×3300mm |
| Operating weight(Standard) | — | 16100kg |
Performance specification
| Item | Unit | Value |
|---|---|---|
| Travelling speed ,forward | — | 5、8、11、19、23、38 km/h |
| Travelling speed ,reverse | — | 5、11、23 km/h |
| Tractive force(f=0.75) | — | 82KN |
| Max. gradeability | — | 20% |
| Tire inflation pressure | — | 260 kPa |
| Working hydraulic pressure | — | 16 MPa |
| Transmission pressure | — | 1.3～1.8MPa |
| Max. steering angle of front wheels | — | ±50° |
| Max. lean angle of front wheels | — | ±17° |
| Max. oscillation angle of front axle | — | ±15° |
| Max. oscillation angle of balance box | — | 15 |
| Frame articulation angle | — | ±27° |
| Min. turning radius using articulation | — | 7.3m |
Biade
| Item | Unit | Value |
|---|---|---|
| Maximum lift above ground | — | 450mm |
| Maximum depth of cutting | — | 500mm |
| Maximum blade position angle | — | 90° |
| Blade cutting angle | — | 28°—70° |
| Circle reversing rotation | — | 360° |
| Moldboard width ×height | — | 4270×610mm |
