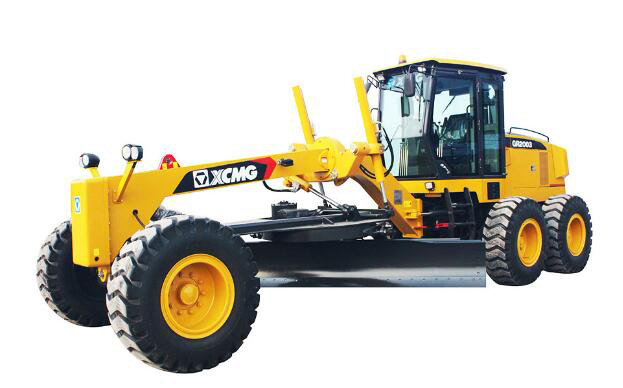

Motor grader
GR2003
GR2003 — Motor grader. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| General Data (Engine model) | — | SC9DK220.1G3 |
| Rated power | kw/rpm | 162/2000 |
| Dimension (standard) | mm | 8970×2625×3420 |
| Weight (standard) | kg | 16000 |
| Performance Data (Front speed) | — | 5、8、11、19、23、38 |
| Reverse Speed | km/h | 5、11、23 |
| Break force f=0.75 | kN | 82 |
| max grade ability | % | 0.2 |
| mini turning radius | m | 7.3 |
| blade lenght&height | mm | 4270×610 |
