Motor grader

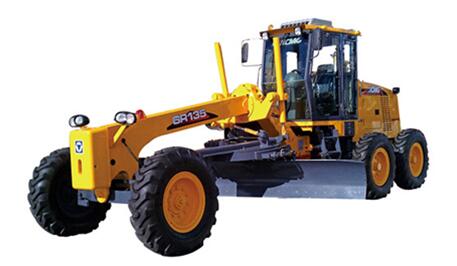

GR135
GR135 is a motor grader with 112/2200 kW/rpm rated power/speed with 6BTA5.9-C150-Ⅱ engine. GR135 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing scarification, snow removal for large areas such as highway, airports, farmlands etc. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conserancy construction, farmland improvement, etc.
Parameters
| Item | Unit | Value |
|---|---|---|
| Engine model | — | 6BTA5.9-C150-Ⅱ |
| Rated power/speed | kW/rpm | 112/2200 |
| Machine dimension | mm | 8015 x 2380 x 3050 |
| Machine weight | kg | 11200 |
| Drive speed, forward | km/h | 5、8、13、20、30、42 |
| Drive speed, reverse | km/h | 5、13、30 |
| Traction force f=0.75 | kN | ≥59 |
| Maximum gradeability | % | ≥25 |
| Minimum turning radius | m | 6.6 |
| Blade Length x Height | mm | 3660 x 610 |
| Emission | — | EU Stage Ⅱ |
