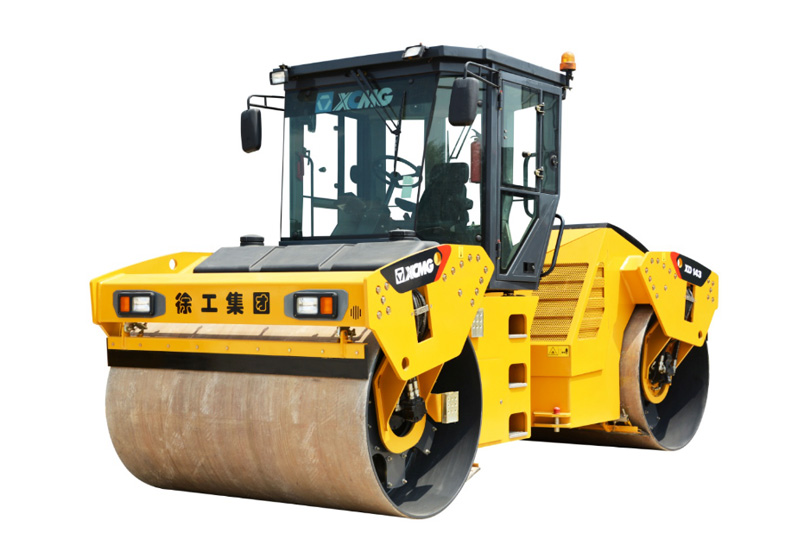

Double drums compactor
XD143
XD143 — Double drums compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| The front wheel distribution weight | kg | 7000 |
| The rear wheel distribution weight | kg | 7000 |
| Nominal amplitude | mm | 0.3/0.8 |
| vibrational frequency | Hz | 67/50 |
| Vibration force(H/L) | kN | 110/170 |
| Vibration wheel size | mm | 1300×2130 |
| Theoretical gradeability | % | 35 |
| minimum turning radius(inside/outside) | mm | 4470/6600 |
| oscillating angle | ° | ±8 |
| steering angle | ° | ±35 |
| type | — | Inline four-cylinder turbo water-cooling |
| rated power | kW | 111 |
| rated speed | r/min | 2100 |
