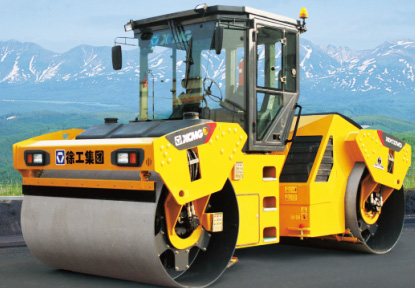

Double drums compactor
XD133VO
XD133VO — Double drums compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| The front wheel distribution weight | kg | 6400 |
| The rear wheel distribution weight | kg | 6800 |
| tractive power (Speed range) | — | I |
| II | — | 0-8 |
| III | — | 0-12 |
| Theoretical gradeability | % | 35 |
| minimum turning radius(inside/outside) | mm | 4670/6800 |
| max.Crabwalk | mm | ±160 |
| oscillating angle | ° | ±8° |
| steering angle | ° | ±35° |
| vibrational frequency | Hz | 67/50 |
| Vibration force(H/L) | kN | 110/170 |
| vibrational frequency | Hz | 29 |
| Vibration force(H/L) | kN | 101 |
| Vibration wheel size | mm | 1400×2130 |
| type | — | Inline four-cylinder turbocharged inter-cooled water-cooling |
| rated power | kW | 118 |
| rated speed | r/min | 2300 |
| electrical system (system voltage) | — | (V) |
| driving system | MPa | 40 |
