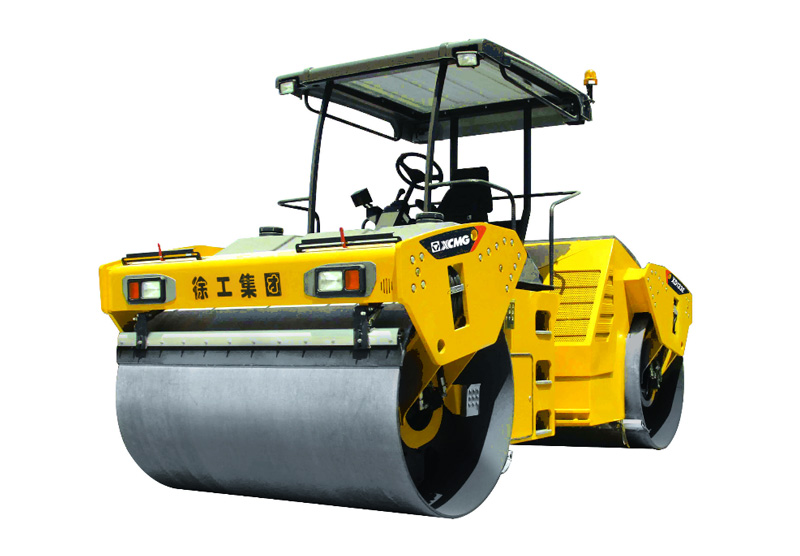

Double drums compactor
XD123E
XD123E — Double drums compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| The front wheel distribution weight | kg | 6150 |
| The rear wheel distribution weight | kg | 6150 |
| tractive power (Speed range(I/II)) | — | (km/h) |
| Theoretical gradeability | % | 30 |
| minimum turning radius(inside/outside) | mm | 4800/6900 |
| max.Crabwalk | mm | ±160 |
| oscillating angle | ° | ±8 |
| steering angle | ° | ±35 |
| Nominal amplitude | mm | 0.4/0.75 |
| vibrational frequency | Hz | 48/45 |
| Vibration force(H/L) | kN | 85/140 |
| type | — | Inline four-cylinder turbocharged inter-cooled water-cooling |
| rated power | kW | 98 |
| rated speed | r/min | 2100 |
