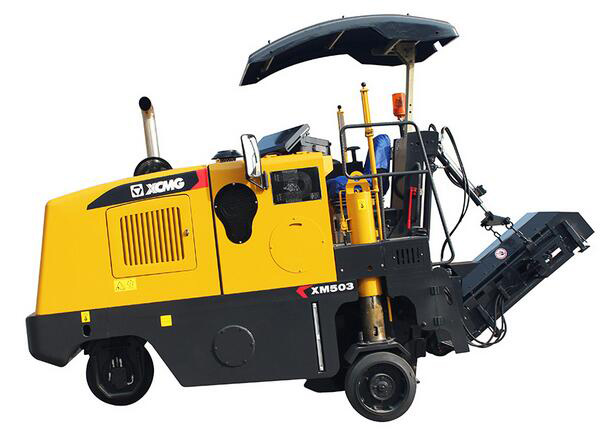

Cold milling machine
XM503
XM503 — Cold milling machine. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Max.milling and mixing width | mm | 500 |
| Max.milling and mixing depth | mm | 180 |
| Drum diameter with tools | m | 54 |
| Milling drum diameter | mm | 660 |
| Engine model | — | SC4H-C125 |
| Enigine Manufacture | — | shangchai |
| Engine speed | rpm/min | 2200 |
| Rated power | kw | 93 |
| Fuel tank capacity | L | 140 |
| Water tank capacity | L | 300 |
| Travel speed | km/h | 0-40 |
| Operating speed | m/min | 0-6 |
| Gradeability | % | 0.6 |
| Operating weight (3.0511E-272) | — | ≤8000 |
| Ground clearance | mm | 180 |
| Complete dimension(L*W*H) | mm | 3610×1765×3346 |
| Conveyor(L*W*H) | mm | 5266×1765×3346 |
