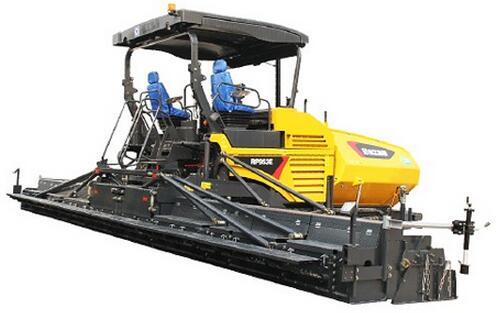

Asphalt paver
RP953E
RP953E — Asphalt paver. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Basic paving width | m | 2.5 |
| Max. paving width | m | 10.5 |
| Max. paving thickness | mm | 400/500 |
| Paving speed | m/min | 0～18 |
| Travel speed | km/h | 0～3.0 |
| Theoretical Productivity | t/h | 900 |
| Hopper Capacity | t | 15 |
| Gradeability (％) | — | 20 |
| Pavement evenness | mm/3m | 1.2 |
| Transverse levelling accuracy | % | ±0.02 |
| Centre crown ratio | % | -1～+4 |
| Engine power | kW | 162(SHANGCHAI) |
| 159(DACHAI) | — | optional |
| Engine speed | r/min | 2000 |
| Distributor speed | r/min | 0～90 |
| Conveyor speed | m/min | 0～24 |
| Vibrator speed | r/min | 0～1500 |
| Vibrator amplitude (mm) | — | Main :5 |
| Auxiliary :0，3，6，9，12 — Dimensions | mm | 6610×2600×3950 |
| Auxiliary :0，3，6，9，12 — Weight | t | 22～30 |
Auxiliary :0，3，6，9，12
| Item | Unit | Value |
|---|---|---|
| Screed Heating (/) | — | gas heating |
| Conveyor&distributor materia level control (/) | — | automatic ultrasonic sensor |
| Automatic levelling control (/) | — | Analog leveling instrument |
