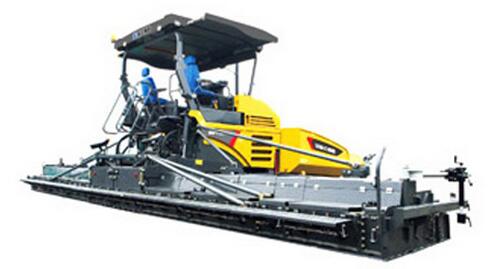

Asphalt paver
RP953
RP953 — Asphalt paver. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Basic paving width | m | 2.5 |
| Max. paving width | m | 10.5 |
| Max. paving thickness | mm | 350 |
| Paving speed | m/min | 0～18 |
| Travel speed | km/h | 0～2.8 |
| Theoretical Productivity | t/h | 900 |
| Hopper Capacity | t | 15 |
| Gradeability (％) | — | 20 |
| Pavement evenness | mm | 0.8 |
| Transverse levelling accuracy | % | ±0.02 |
| Centre crown ratio | % | -1～+4 |
| Engine model | — | BF6M1013 |
| Engine power | kW | 150(EURO II) |
| Engine speed | r/min | 2000 |
| Heating generator power | kW | 28 |
| Weight | t | 22.8～30 |
| Dimension | mm | 6790×2600×3950 |
| Distributor speed | r/min | 0～84 |
| Conveyor speed | m/min | 0～22 |
| Vibrator speed | r/min | 0～1400 |
| Vibrator amplitude (mm) | — | Main :5 |
| auxiliary 0、3、6、9、12 — Vibration frequency | Hz | 0～40 |
auxiliary 0、3、6、9、12
| Item | Unit | Value |
|---|---|---|
| Screed Heating (/) | — | electrical heating |
