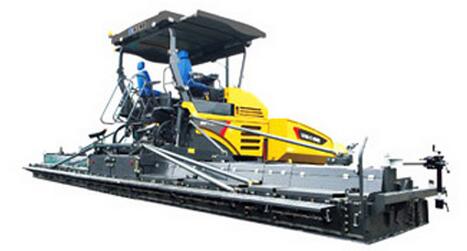

Asphalt paver
RP903E
RP903E — Asphalt paver. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Basic paving width | m | 3 |
| Max. paving width | m | 9 |
| Max. paving thickness | mm | 300 |
| Paving speed | m/min | 0～16 |
| Travel speed | km/h | 0～2.6 |
| Theoretical Productivity | t/h | 800 |
| Hopper Capacity | t | 15 |
| Gradeability (％) | — | 20 |
| Pavement evenness | mm/3m | 1.2 |
| Transverse levelling accuracy | % | ±0.02 |
| Centre crown ratio | % | -1～+3 |
| Engine power | kW | 162 |
| Engine speed | r/min | 2000 |
| Distributor speed | r/min | 0～84 |
| Conveyor speed | m/min | 0～22 |
| Vibrator speed | r/min | 0～1400 |
| Vibrator amplitude (mm) | — | main : 5 |
| Screed Heating (/) | — | electrical heating |
| Weight | mm | 7150×3000×3950 |
| Dimension | t | 24.3～27.2 |
| Conveyor materia level control (/) | — | automatic ultrasonic sensor |
| Distributor materia level control (/) | — | automatic ultrasonic sensor |
| Automatic levelling control (/) | — | analog leveling instrument |
