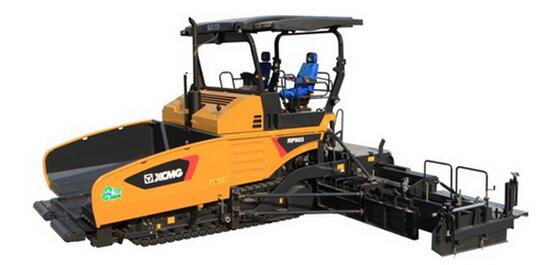

Asphalt paver
RP903
RP903 — Asphalt paver. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Basic paving width | m | 3 |
| Max. paving width | m | 9 |
| Max. paving thickness | mm | 300 |
| Paving speed | m/min | 0～18 |
| Travel speed | km/h | 0～2.8 |
| Theoretical Productivity | t/h | 800 |
| Hopper Capacity | t | 15 |
| Gradeability (％) | — | 20 |
| Pavement evenness (mm) | — | ≤1.2 |
| Transverse levelling accuracy | % | ±0.02 |
| Centre crown ratio | % | -1～+4 |
| Engine model (/) | — | BF6M1013 |
| Engine power | kW | 159 |
| Engine speed | r/min | 2000 |
| Heating generator power | kW | 28 |
| Weight | t | 24.3～27.5 |
| Dimension | mm | 7290×3000×3950 |
| Distributor speed | r/min | 0～84 |
| Conveyor speed | m/min | 0～22 |
| Vibrator speed | r/min | 0～1800 |
| Vibrator amplitude | mm | 4 |
| Vibration frequency | Hz | 0～40 |
| Screed Heating (/) | — | gas heating |
| Conveyor materia level control (/) | — | automatic ultrasonic sensor |
| Vibration type (/) | — | eccentric vibration |
