Asphalt paver

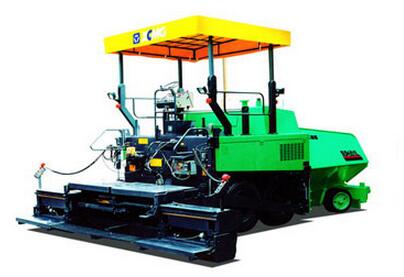

RP601L/RP701L
RP601L/RP701L is a tyre type paver featuring good maneuverability, high speed and large traction force. It can meet different paving requirements, and the paving width can be stepless adjusted from 2.5m to 7.0m. It is mainly used for the maintenance of municipal roads, parking lo
Parameters
| Item | Unit | Value |
|---|---|---|
| Basic paving width | m | 2.5 |
| Max. paving width | m | 6.0/7.0 |
| Max. paving thickness | mm | 300 |
| Paving speed | m/min | 0～18 |
| Travel speed | km/h | 0～18 |
| Theoretical Productivity | t/h | 400 |
| Hopper Capacity | t | 13 |
| Gradeability | % | 20 |
| Pavement evenness | mm/3m | 3 |
| Transverse levelling accuracy | % | ±0.03 |
| Centre crown ratio | % | 0～+3 |
| Engine model | — | D4114ZG2B |
| Engine power | kw | 100 |
| Engine speed | r/min | 2400 |
| Fuel tank capacity | L | 170 |
| Machine weight | — | 15.3～19 |
| Dimension | mm | 6096X2580X3832 |
| Auger speed | r/min | 0～82 |
| Conveyor speed | m/min | 0～36 |
| Vibrator speed | r/min | 0~1470 |
| Vibrator amplitude | mm | 4 |
| Screed heating | — | Electrical heating |
| Auger and conveyor control | — | Automatic Control by Ultrasonic Sensors |
| Automatic levelling control | — | Simulation control |
| Screed model | — | 475 |
| Type (/) | — | Gas heating, vibration |
| Width | m | 2.5-6.0/7.0m |
