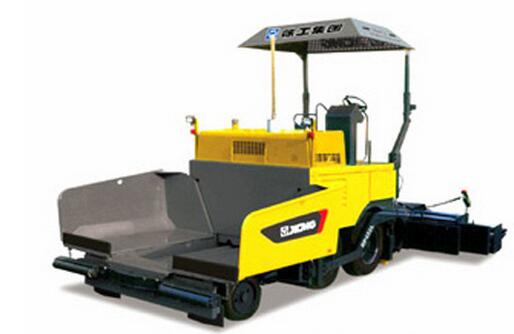

Asphalt paver
RP452L
RP452L — Asphalt paver. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Working Parameter — Theoretical Productivity | t/h | 240 |
| Working Parameter — Max. paving width | m | 4.5 |
| Working Parameter — Max. paving thickness | mm | 150 |
| Working Parameter — Max Paving speed | m/min | 13 |
| Working Parameter — Pavement evenness | mm/3m | 3 |
| Travel speed parameters — Maximum travel speed | km/h | 13 |
| Travel speed parameters — Gradeability | % | 20 |
| Conveyor&feeding parameter — Scraper conveyor speed | m/min | 0～30 |
| Conveyor&feeding parameter — Screw feeding speed | r/min | 0～73 |
| Conveyor&feeding parameter — Screw diameter | mm | 360 |
Working Parameter
| Item | Unit | Value |
|---|---|---|
| Compactedness ((%)) | — | ≥80 |
| Transverse levelling accuracy ((%)) | — | ＜5 |
Travel speed parameters
| Item | Unit | Value |
|---|---|---|
| Drive type | — | (wheel type |
| Mini diameter of turning circle ((wheel type)) | — | 16 |
| Service braking system | — | hydrostatic+Multiple brake disk, hydraulic release |
| Parking braking system | — | wet type Multiple brake disk |
| Track tension ((crawler type )) | — | / |
| Braking distance ((wheel type)) | — | 4.7 |
| Tyre size ((wheel type)) | — | 974 |
Conveyor&feeding parameter
| Item | Unit | Value |
|---|---|---|
| Type | — | conveyo&feeding linkage |
| Drive type | — | Bridge type hydraulic drive |
| Lubricating system | — | hand lubrication |
