Asphalt paver
RP403

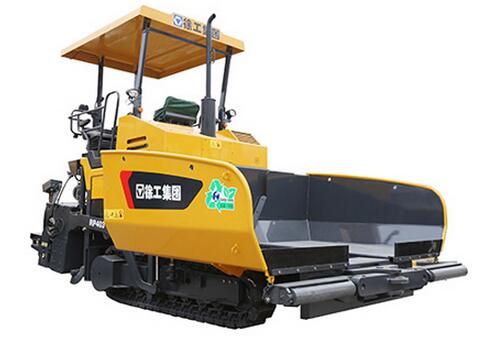

RP403 — Asphalt paver. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Working Parameter — Theoretical Productivity | t/h | 300 |
| Working Parameter — Max. paving width | m | 4.2 |
| Working Parameter — Max. paving thickness | mm | 200 |
| Working Parameter — Max Paving speed | m/min | 30 |
| Travel speed parameters — Maximum travel speed | km/h | 3.6 |
| Travel speed parameters — Gradeability | % | 20 |
| Conveyor&feeding parameter — Scraper conveyor speed | m/min | 0～28 |
| Conveyor&feeding parameter — Screw feeding speed | r/min | 0～75 |
| Conveyor&feeding parameter — Screw diameter | mm | 300 |
Working Parameter
| Item | Unit | Value |
|---|---|---|
| Pavement evenness ((mm/3m)) | — | ≤2 |
| Compactedness ((%)) | — | ≥80 |
| Transverse levelling accuracy ((%)) | — | ≤5 |
Travel speed parameters
| Item | Unit | Value |
|---|---|---|
| Drive type | — | crawler type |
| Mini diameter of turning circle ((wheel type)) | — | / |
| Service braking system | — | hydrostatic |
| Parking braking system | — | multiple brake disk, hydraulic release |
| Track tension ((crawler type )) | — | hydraulic track tension |
| Braking distance ((wheel type)) | — | / |
| Tyre size ((wheel type)) | — | / |
Conveyor&feeding parameter
| Item | Unit | Value |
|---|---|---|
| Type | — | independent conveyo&feeding |
| Drive type | — | left /right independent hydraulic drive |
| Lubricating system | — | hand lubrication |
