Asphalt paver

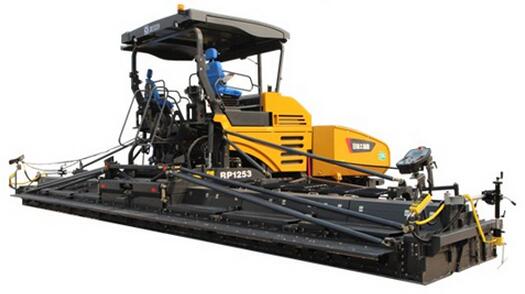

RP1253
RP1253 — Asphalt paver. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Basic paving width | m | 2.5 |
| Max. paving width | m | 12 |
| Max. paving thickness | mm | 350 |
| Paving speed | m/min | 0～18 |
| Travel speed | km/h | 0～3.0 |
| 0～3.5 | — | EUROIII |
| Theoretical Productivity | t/h | 900 |
| Hopper Capacity | t | 15 |
| Gradeability (％) | — | 20 |
| Pavement evenness | mm | 0.8 |
| Centre crown ratio | % | -1～+4 |
| Engine model (--) | — | BF6M1013 |
| BFM8 4V | — | EUROIII |
| Engine power | kW | 183 |
| 210 | — | EUROIII |
| Engine speed | r/min | 2000 |
| Conveyor speed | m/min | 0～22 |
| Distributor speed | r/min | 0～90 |
| Vibrator speed | r/min | 0～1400 |
| Vibrator amplitude (mm) | — | Main :5/Auxiliary :0、5、10 |
| Vibration frequency | Hz | 0～42 |
| Dimensions | mm | 6760×2600×3950 |
| Weight | t | 23.5～32 |
| Diesel tank capacity | L | 300 |
| Oil tank capacity | L | 300 |
