Mining truck

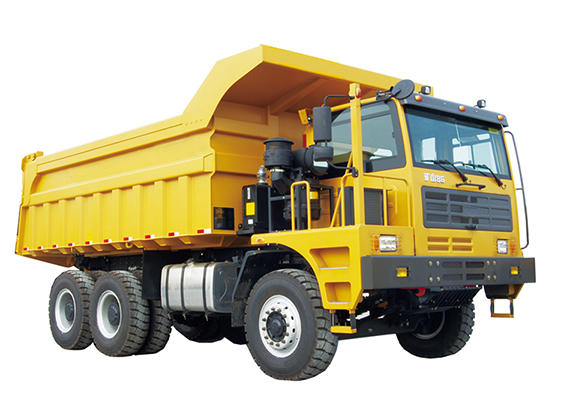

MT6031A
As the most popular product of CANMAX, MT6031A was the first Chinese off-highway dump truck in the 60 ton range. It is designed for large open-pit mine. With its good reliability, reasonable price and high availability, it provides total versatility to access the entire jobsite.
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | MT6031A |
| Curb Weight(kg) | — | 29000 |
| GrossWeight(kg) | — | 86000 |
| PayLoad(t) | — | 57 |
| Engine | — | WP12G430E310 / WD12G420E211 |
| Gearbox | — | 7DS200K |
| Axle Load | — | 19T+35T+35T |
| Tyre | — | 14.00-25-36PR |
| Max. Speed(km/h) | — | 44 |
| Rock Dump Body Volume-heaped(m) | — | 31 |
| Tailgate Type Dump Body Volume-heaped(m) | — | 35 |
| Overall Dimension(Long×wide×highmm) | — | 9070×3450×3960 |
