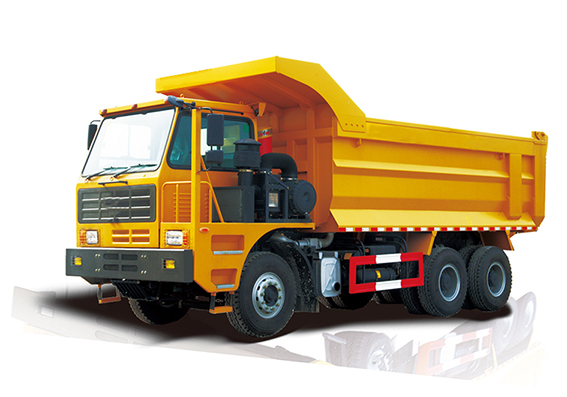

Mining truck
MT3223A
With good maneuverability, MT3223A dump trucks are widely applied for the long distance haul of loose materials in the small mines and the road maintenance in rainy season.
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | MT323A |
| Curb Weight(kg) | — | 18000 |
| GrossWeight(kg) | — | 50000 |
| PayLoad(t) | — | 32 |
| Engine | — | WP10.340E32 |
| Gearbox | — | 9JSD150A |
| Axle Load | — | 9.5T+16T+16T |
| Tyre | — | 12.00R20-22PR |
| Max. Speed(km/h) | — | 65 |
| Rock Dump Body Volume-heaped | — | 23.5 |
| Tailgate Type Dump Body Volume-heaped | m | 23 |
| Overall Dimension (Long ×wide ×highmm) | — | 8770×2558×3530 |
