Crusher

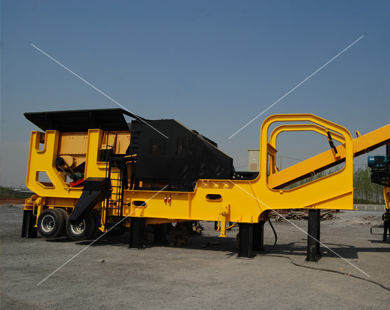

Mobile Jaw crushing plant (tyre) 70-300t/h
Mobile jaw crushing plant is new stone crushing equipment, whichs widely used in material processing,which need to move different place, in the metallurgy, water & electricity, chemical industry especially for the flowing material operation of high way hydroelectric project,railw
Parameters
| Item | Unit | Value |
|---|---|---|
| 型号 Model (DLDⅡ2-1218) | — | DLDⅡ2-1218 |
| 破碎机型号 Crusher Model (PF1214 DMH1848T) | — | PF1315 DMH1848T |
| 车载主皮带机 Trailer main belt (B800) | — | B800 |
| 车载回料皮带机 Trailer return material belt (B800) | — | B100 |
| 车载成品料皮带机 Trailer finished material belt | — | 2×B500 |
| 运输长度 Transportation length(mm) | — | 17930 |
| 运输宽度 Transportation width(mm) | — | 3155 |
| 运输高度 Transportation height(mm) | — | 4900 |
| 工作长度 Working Length(mm) | — | 17830 |
| 工作宽度 Working width(mm) | — | 4180 |
| 工作高度 Working height(mm) | — | 5640 |
| 功率 Power(KW) | — | 258 |
| 车桥配置 Trailer axle (3桥(3axle)) | — | 3桥( 3axle) |
| 重量 Weight(T) | — | 56 |
