Truck mounted crane

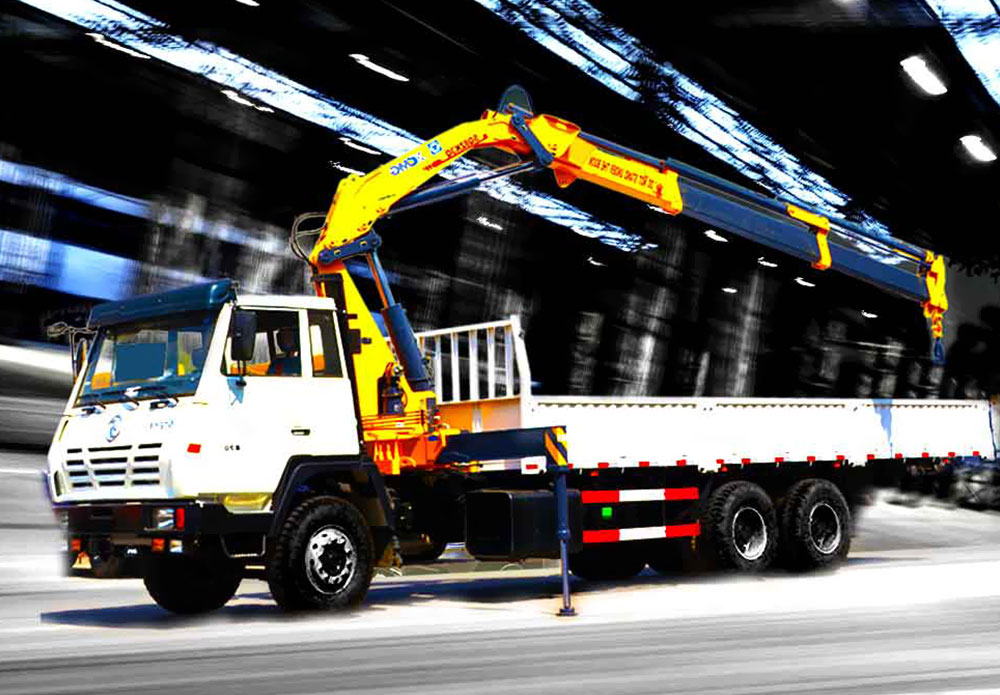

SQ8ZK3Q
ModelSQ8ZK3QUnitMax Lifting Moment16t.mMax Lifting Capacity8000kgRecommend Power Needed At Recommend SQ8ZK3Q Lifting capability diagram
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 16 |
| Max Lifting Capacity | kg | 8000 |
| Recommend Power Needed At Recommend Oil Flow | kw | 28 |
| Max Oil Flow of Hydraulic System | L/mi | 40 |
| Rated Pressure Of Hydraulic System | MPa | 28 |
| Oil Tank Capacity | L | 160 |
| Rotation Angle ((360°)All Rotation) | — | 。 |
| Crane Weight | kg | 2970 |
| Installation Space | mm | 1150 |
| Choice of Chassis | — | CA1176PK2L9T3A95 ;CA1170PK2L7T3EA80; CA1240PK2L7T4EA81; HFC1202KR1K3;EQ5161GFJ7;BJ1317VNPJJ-S5; EQ5201GFJ6;CA1200PK2L7T3EA80; LZ1160LCMTDFL1250A9;BJ5317ZNPJJ-S;CA1253P7K2L11T1E ;EQ1252GFJ;ND1255B50J |
| Working radius | m | 4.175 |
| Lifting capacity | kg | 3700 |
