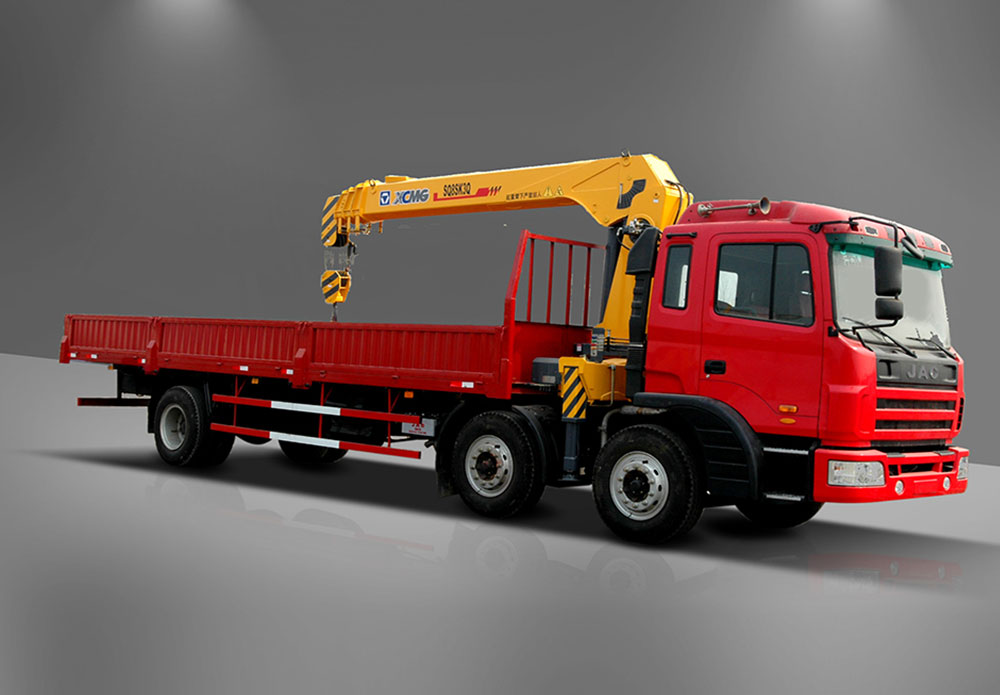

Truck mounted crane
SQ8SK3Q
ModelSQ8SK3QUnitMax Lifting Capacity8000kgMax Lifting Moment20T.MRecommend Power28kwMax Oil Flow of
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 8000 |
| Max Lifting Moment | T.M | 20 |
| Recommend Power | kw | 28 |
| Max Oil Flow of Hydraulic System | L/min | 55 |
| Max Pressure of Hydraulic System | MPa | 27 |
| Oil Tank Capacity | L | 160 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 3300 |
| Installation Space | mm | 1200 |
| Choice of Chassis | — | CA1176PK2L9T3A95 ; CA1170PK2L7T3EA80; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; CA1200PK2L7T3EA80; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; CA1253P7K2L11T1E ; EQ1252GFJ; |
| Working radius | m | 4.5 |
| Lifting capacity | kg | 4400 |
