Truck mounted crane

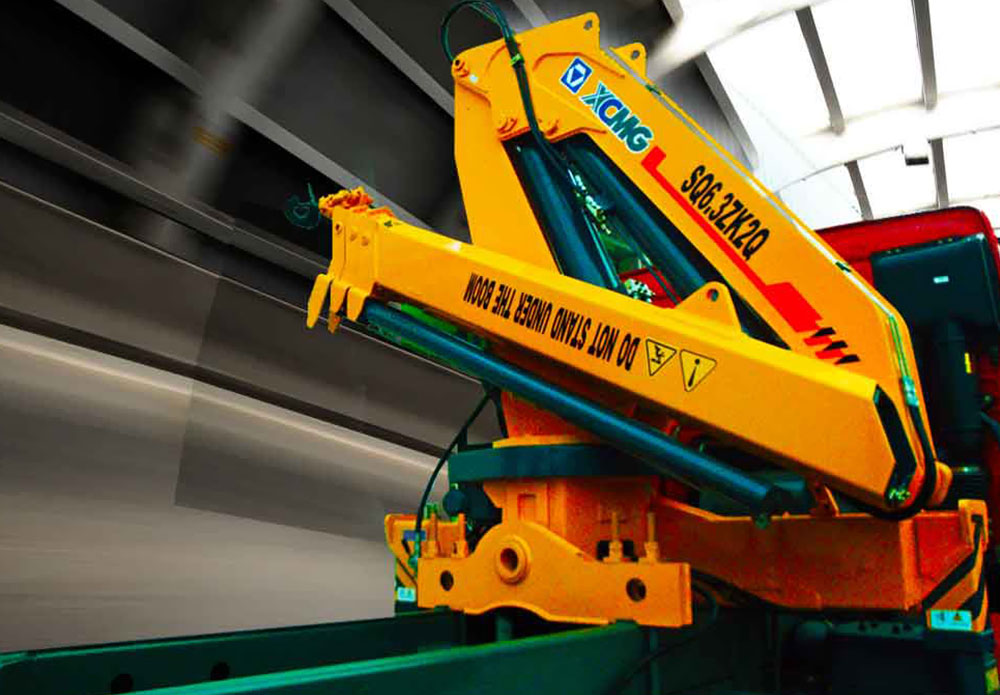

SQ6.3ZK3Q
ModelSQ6.3ZK3QUnitMax Lifting Moment13.23t.mMax Lifting Capacity6300kgRecommend Power Needed At Reco
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 13.23 |
| Max Lifting Capacity | kg | 6300 |
| Recommend Power Needed At Recommend Oil Flow | kw | 18 |
| Max Oil Flow of Hydraulic System | L/min | 25 |
| Rated Pressure Of Hydraulic System | MPa | 28 |
| Oil Tank Capacity | L | 90 |
| Rotation Angle ((360°)All Rotation) | — | ° |
| Crane Weight | kg | 2226 |
| Installation Space | mm | 1050 |
| Choice of Chassis | — | CA1163P7K2L3E; CA1176PK2L9T3A95 CA1170PK2L7T3EA80； CA1140PK2L3EA80; DFL1140B；EQ1126KJ1；HFC1132KR1K3；HFC1202KR1K3；EQ1141NBJ2；EQ5161GFJ7；BJ1317VNPJJ-S5；EQ5201GFJ6；LZ1160LCMT；DFL1250A9；BJ5317ZNPJJ-S；HN1310P29D6M3J; NXG1160D3ZAL1X； |
| Working radius | m | 4.54 |
| Lifting capacity | kg | 2700 |
