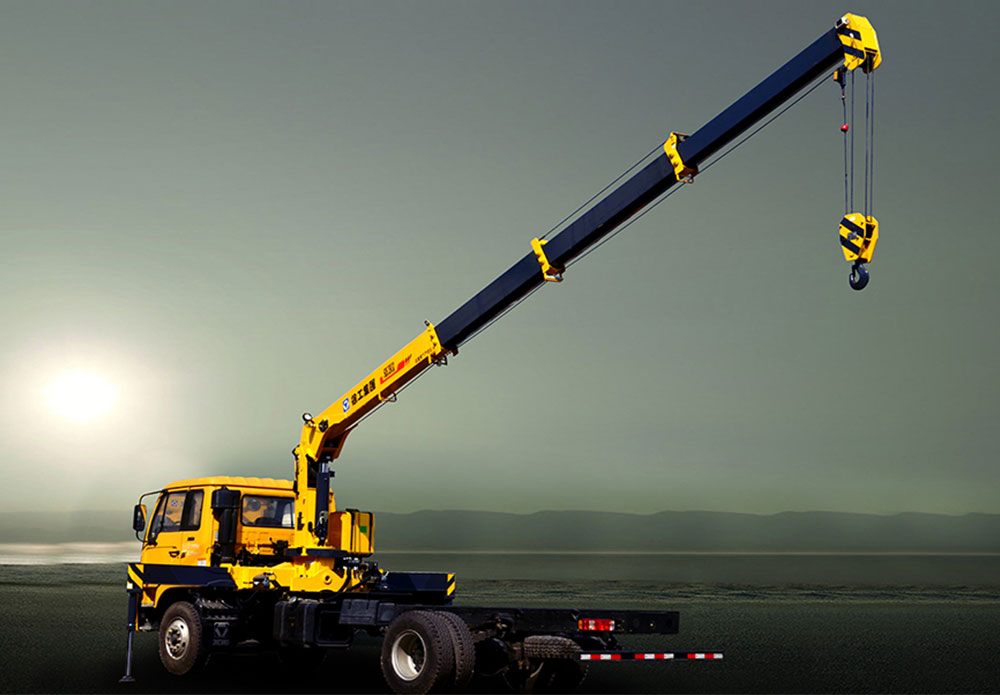

Truck mounted crane
SQ6.3SK2Q
ModelSQ6.3SK2QUnitMax Lifting Capacity6300kgMax Lifting Moment15.7T.MRecommend Power20kwMax Oil Flow
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 6300 |
| Max Lifting Moment | T.M | 15.7 |
| Recommend Power | kw | 20 |
| Max Oil Flow of Hydraulic System | L/min | 40 |
| Max Pressure of Hydraulic System | MPa | 20 |
| Oil Tank Capacity | L | 90 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 2117/2270 |
| Installation Space | mm | 900 |
| Choice of Chassis | — | CA1163P7K2L3E ; CA1176PK2L9T3A95 ; CA1170PK2L7T3EA80; CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1202KR1K3; EQ1141NBJ2; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; NXG1160D3ZAL1X |
| Working radius | m | 3.82 |
| Lifting capacity | kg | 2900 |
