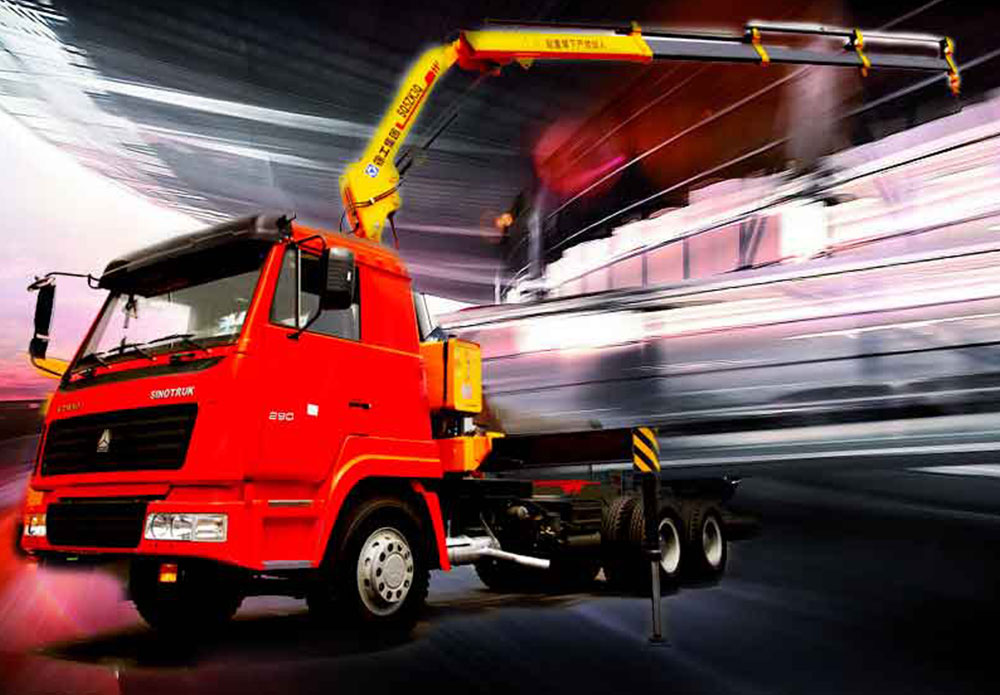

Truck mounted crane
SQ5ZK3Q
PARAMETER SPAREINQUIRYModelSQ5ZK3QUnitMax Lifting Moment10.5t.mMax Lifting Capacity5000kgRecommend P PARAMETER SPARE INQUIRY
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 10.5 |
| Max Lifting Capacity | kg | 5000 |
| Recommend Power Needed At Recommend Oil Flow | kw | 18 |
| Max Oil Flow of Hydraulic System | L/min | 25 |
| Rated Pressure Of Hydraulic System | MPa | 28 |
| Oil Tank Capacity | L | 90 |
| Rotation Angle ((360°)All Rotation) | — | 。 |
| Crane Weight | kg | 2117 |
| Installation Space | mm | 1050 |
| Choice of Chassis | — | CA1140PK2L3EA80 ;DFL1140B;EQ1126KJ1;HFC1132KR1K3;LZ1120LAPT;EQ1141NBJ2;EQ5121GFJ; EQ5201GFJ6;HN1310P29D6M3J ;NXG1160D3ZAL1X； |
| Working radius | m | 4.54 |
| Lifting capacity | kg | 2400 |
