Truck mounted crane

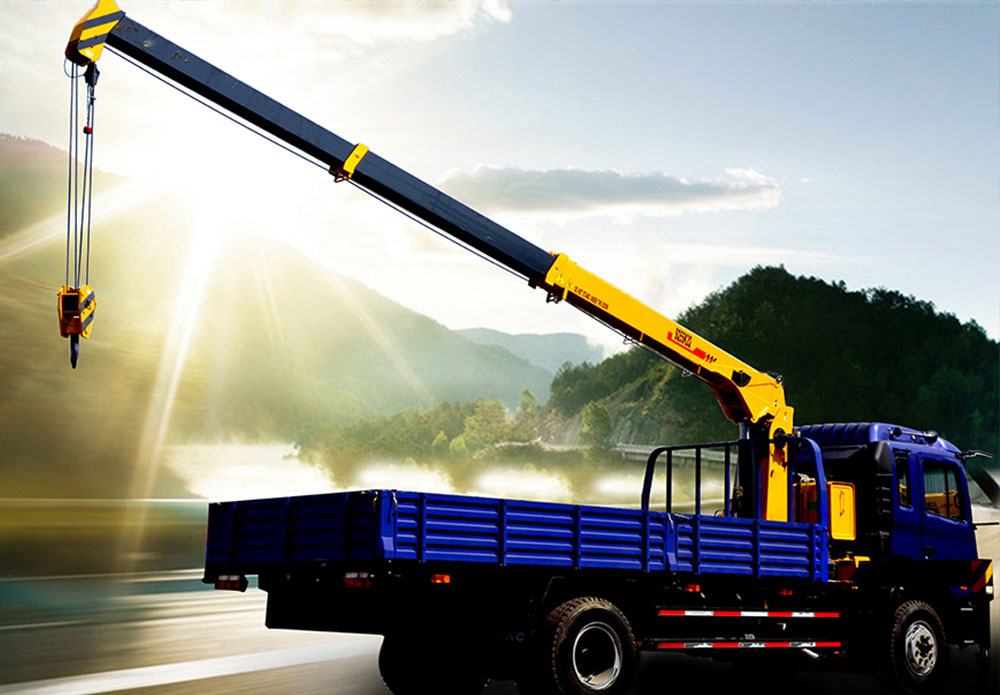

SQ5SK3Q
SQ2SK1Q Lifting capability diagram SQ5SK2Q Lifting capability diagram
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 5000 |
| Max Lifting Moment | T.M | 12.5 |
| Recommend Powe | kw | 18 |
| Max Oil Flow of Hydraulic System | L/min | 32 |
| Max Pressure of Hydraulic System | MPa | 18 |
| Oil Tank Capacit | L | 100 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 2074/2170 |
| Installation Space | mm | 1000 |
| Choice of Chassis | — | CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5201GFJ6; EQ5201GFJ6; NXG1160D3ZAL1X |
| Working radius(m) | — | 3.62 |
| Lifting capacity(kg) | — | 2800 |
