Truck mounted crane

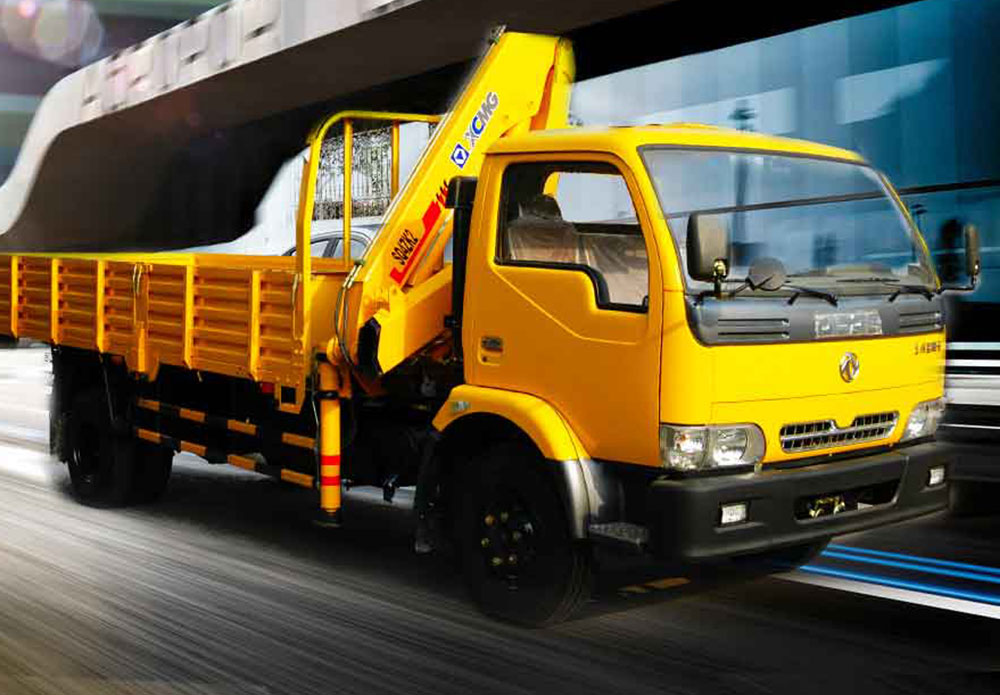

SQ4ZK2
ModelSQ4ZK2UnitMax Lifting Moment8.4t.mMax Lifting Capacity4000kgRecommend Power Needed At Recommend SQ4ZK2 Lifting capability diagram
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 8.4 |
| Max Lifting Capacity | kg | 4000 |
| Recommend Power Needed At Recommend Oil Flow | kw | 14 |
| Max Oil Flow of Hydraulic System | L/min | 25 |
| Rated Pressure Of Hydraulic System | MPa | 26 |
| Oil Tank Capacity | L | 60 |
| Rotation Angle (370) | — | 。 |
| Crane Weight | kg | 1200 |
| Installation Space | mm | 850 |
| Choice of Chassis | — | EQ1092FJ1;EQ1092FJ;DFL1120B D530;EQ1081GJ12D5;HFC1132KR1K3;LZ1120LAPT;HFC1083K103R1D;EQ1092F3GJ1;EQ5121GFJ; |
| Working radius | m | 4.15 |
| Lifting capacity | kg | 1840 |
