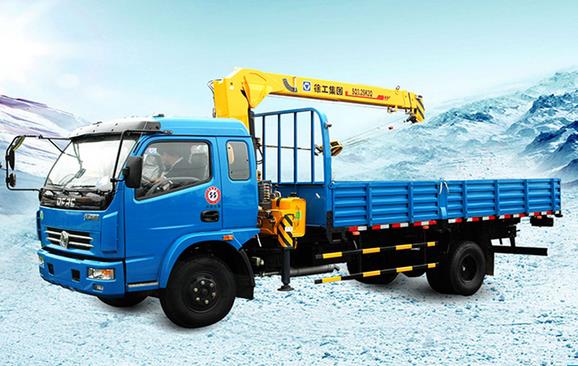

Truck mounted crane
SQ3.2SK1Q
ModelSQ3.2SK1QUnitMax Lifting Capacity3200kgMax Lifting Moment6.72T.MRecommend Power14kwMax Oil Flow SQ3.2SK1Q Lifting capability diagram
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 3200 |
| Max Lifting Moment | T.M | 6.72 |
| Recommend Power | kw | 14 |
| Max Oil Flow of Hydraulic System | L/min | 25 |
| Max Pressure of Hydraulic System | MPa | 20 |
| Oil Tank Capacity | L | 30 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 1105/1229 |
| Installation Space | mm | 850 |
| Choice of Chassis | — | EQ1092FJ;EQ1092FJ1;EQ1092F3GJ1;EQ1081GJ12D5; DFL1120B;HFC1083K103R1D;EQ5121GFJ; |
| Working radius | m | 3.00 |
| Lifting capacity | kg | 1850 |
