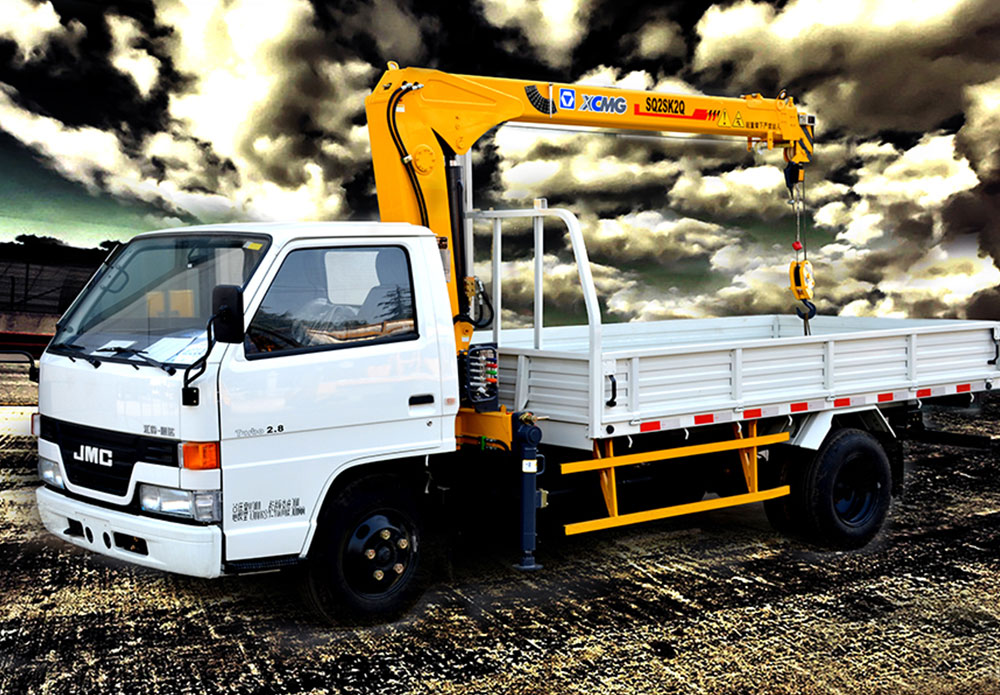

Truck mounted crane
SQ2SK1Q
ModelSQ2SK1QUnitMax Lifting Capacity2100kgMax Lifting Moment4.2T.MRecommend Power9kwMax Oil Flow of SQ2SK1Q Lifting capability diagram
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 2100 |
| Max Lifting Moment | T.M | 4.2 |
| Recommend Power | kw | 9 |
| Max Oil Flow of Hydraulic System | L/min | 20 |
| Max Pressure of Hydraulic System | MPa | 16 |
| Oil Tank Capacity | L | 25 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 640/818 |
| Installation Space | mm | 850 |
| Choice of Chassis | — | HFC1065KRT;JX1050TGB23;JX1060TSG23;EQ1060GJ20D3; EQ1092FJ;EQ1092FJ1;EQ1060TJ20D3 |
| Working radius | m | 2.50 |
| Lifting capacity | kg | 1800 |
