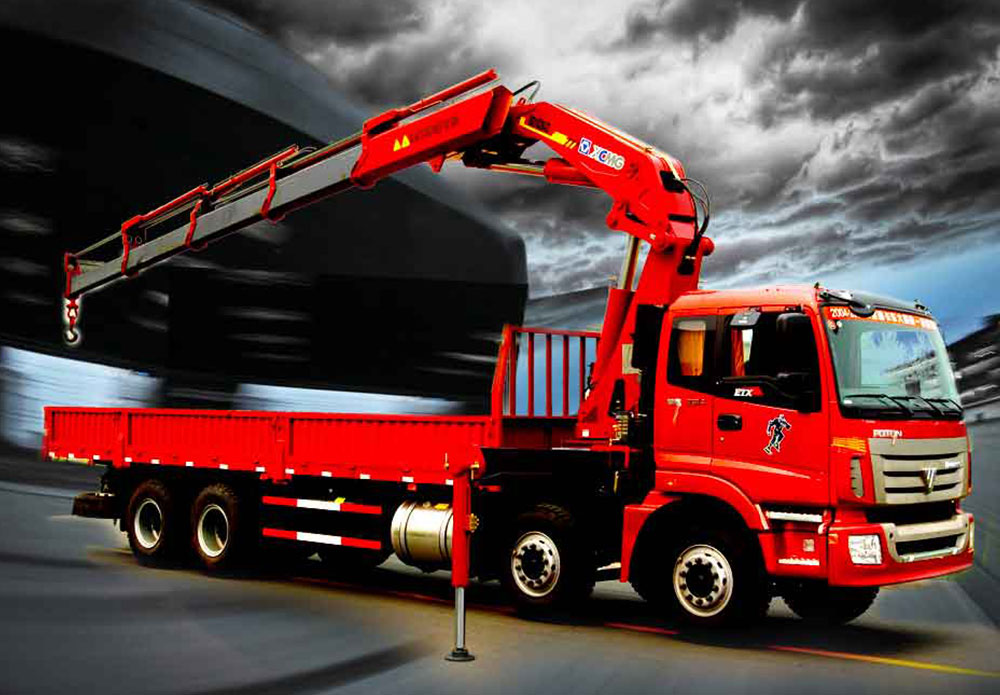

Truck mounted crane
SQ16ZK4Q
ModelSQ16ZK4QUnitMax Lifting Moment40t.mMax Lifting Capacity16000kgRecommend Power Needed At Recomme
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Moment | t.m | 40 |
| Max Lifting Capacity | kg | 16000 |
| Recommend Power Needed At Recommend Oil Flow | kw | 37 |
| Max Oil Flow of Hydraulic System | L/min | 63 |
| Rated Pressure Of Hydraulic System | MPa | 31.5 |
| Oil Tank Capacity | L | 250 |
| Rotation Angle | — | (360°) All Rotation |
| Crane Weight | kg | 5000 |
| Installation Space | mm | 1500 |
| Choice of Chassis | — | NXG1310D3ZEX;BJ1317VNPJJ-S5;DFL1311A3 ; |
| Working radius(m) | — | 4.098 |
| Lifting capacity(kg) | — | 9600 |
