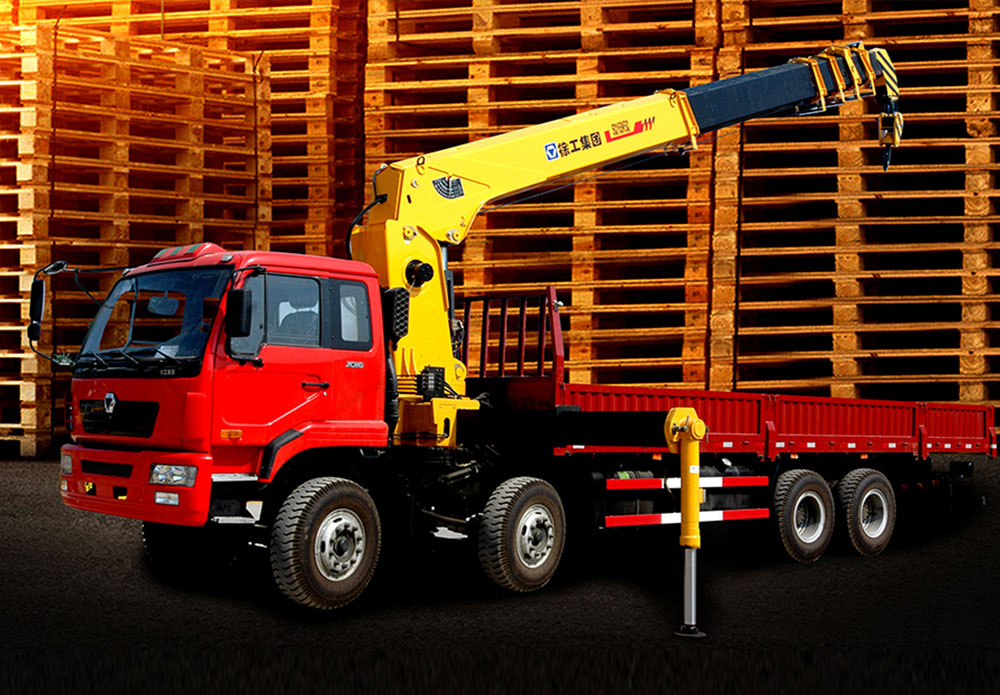

Truck mounted crane
SQ16SK4Q
ModelSQ16SK4QUnitMax Lifting Capacity16000kgMax Lifting Moment40T.MRecommend Power45kwMax Oil Flow o
Parameters
| Item | Unit | Value |
|---|---|---|
| Max Lifting Capacity | kg | 16000 |
| Max Lifting Moment | T.M | 40 |
| Recommend Power | kw | 45 |
| Max Oil Flow of Hydraulic System | L/min | 80 |
| Max Pressure of Hydraulic System | MPa | 28 |
| Oil Tank Capacity | L | 260 |
| Rotation Angle | — | All Rotation |
| Crane Weight | kg | 6020 |
| Installation Space | mm | 1400 |
| Choice of Chassis | — | BJ1317VNPJJ-S5;NXG1310D3ZEX;DFL1311A3; |
| Working radius(m) | — | 5.6 |
| Lifting capacity(kg) | — | 7000 |
